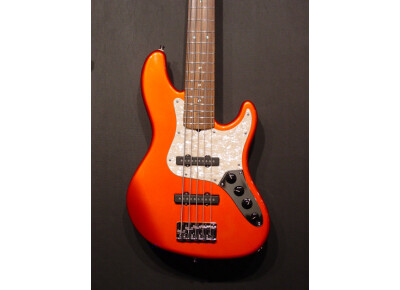

Fender American Deluxe Jazz Bass V [2002-2003]
+

Fender American Deluxe Jazz Bass V [2002-2003]

  • J'aime
  • Tweet
  • Pin it

American Deluxe Jazz Bass V [2002-2003], Basse électrique 5 cordes ou plus de la marque Fender appartenant à la série American Deluxe Jazz Bass.

Fiche technique Fender American Deluxe Jazz Bass V [2002-2003]

  • Fabricant : Fender
  • Modèle : American Deluxe Jazz Bass V [2002-2003]
  • Série : American Deluxe Jazz Bass
  • Catégorie : Basses électriques 5 cordes et plus
  • Fiche créée le : 09/12/2015

In 2002, Fender made some changes to the basses of the American Deluxe Series. The latest version of the Fender Jazz Bass once-again captures the spirit of innovation with its classic features combined with the best that modern technology has to offer. A 3-band active EQ and special design Noiseless J-Bass pickups are featured along with a graphite reinforced neck, premium Alder or Ash body (depending on finish), and combination string-through-body / top-load bridge.

General

  • Model Name: American Deluxe Jazz Bass
  • Series: American Deluxe Series
  • Part Number: Pao Ferro p/n (019-5960-color) or Maple p/n (019-5962-color)
  • Color:
    • (700) 3-Color Sunburst
    • (706) Black
    • (725) Chrome Red
    • (782) Candy Tangerine,
    • (731)* Aged Cherry Sunburst
    • (748)* Teal Green Transparent

* Ash



Body & Neck

  • Body: Select Alder or Premium Ash*
  • Neck: Maple, Modern 'C' Shape, (Satin Polyurethane Finish)
  • Fingerboard: Pao Ferro p/n (019-5960) or Maple p/n (019-5962), (9.5 in. Radius/241 mm)
  • No. of Frets: 22 Medium Jumbo Frets
  • Scale Length: 34 in. (864 mm)
  • Width at Nut: 1.875" (47.6 mm)



Electronics

  • Pickups: 2 Dual-Coil Ceramic Noiseless Jazz Bass Pickups with Nickel Plated Pole Pieces
  • Controls:
    • Master Volume
    • Pan Pot
    • 3-Band Active EQ:
      • Treble Boost/Cut: +/- 10 db @ 8kHz, a shift in the cut frequency, and about a 2dB slope per octave
      • Mid Boost/Cut: +10dB, -15dB @ 500Hz, and a wide band slope
      • Bass Boost/Cut: +/- 12 db @ 40 Hz, with a 4dB slope per octave
  • Pickup Switching: Pan Pot



Hardware

  • Machine Heads: Fender/Schaller Deluxe Lightweight Tuning Machines
  • Bridge: Deluxe Chrome Plated Steel Bridge Plate (Strings-Thru-Body or Top Load), with Nickel Plated Brass Saddles
  • Hardware: Chrome
  • Pickguard:
    • 4-Ply Brown Shell on (700),
    • 3-Ply Mint Green on (706), (725), (731), (748), (782)



Miscellaneous

  • Strings: Fender® USA Bass 8250/5M, NPS, (.045, .065, .085, .110TW, .130TW Gauges)
  • Case: Standard Molded Case
  • Unique Features: Graphite Reinforced Maple Neck, 18-Volt Power Supply, 5-Bolt Neck Plate, Contoured Heel for Easier Access to Upper Frets, Abalone Dot Position Inlays, Rolled Fingerboard Edges, Highly Detailed Nut and Fret Work



Distribué par fenderfrance

»

Images Fender American Deluxe Jazz Bass V [2002-2003]

  • Fender American Deluxe Jazz Bass V [2002-2003]
  • Fender American Deluxe Jazz Bass V [2002-2003]
  • Fender American Deluxe Jazz Bass V [2002-2003]
  • Fender American Deluxe Jazz Bass V [2002-2003]
