Fender American Elite Jazz Bass V

General

• Model Name: American Elite Jazz Bass V
• Series: American Elite
• Color / Part Number:
• w/ Ebony fingeboard (01971017xx, xxx = color) [2017-Current]:
• Ocean Turquoise
• w/ Maple fingerboard (01971027xx)
• Black (06) [2016-Current]
• Champagne (08) [2017-Current]
• Natural (21) [2016-Current]
• Tobbaco Sunburst (52) [2016-Current]
• w/ Rosewood fingerboard (01971007xx]
• 3-Color Sunburst (00) [2016-Current]]
• Olympic White (05) [2016]

Body & Neck

• Body Material: Alder (except Natural & Tobacco Sunburst: Ash)
• Body Finish: Gloss Polyurethane
• Neck Material: Maple
• Neck Finish: Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
• Neck Binding:
• 1-Ply Black (Black, Champagne, Natural, Tobacco Sunburst)
• 1-Ply White (3-Color Sunburst, Ocean Turquoise)
• Neck Shape: Compound Back Shape, Modern "C" to "D"
• Scale Length: 34" (864 mm)
• Fingerboard: Material: Ebony or Maple or Rosewood
• Fingerboard Radius: 9.5" to 14" Compound Radius (241 mm-355.6 mm)
• Number of Frets: 21
• Fret Size: Medium Jumbo
• Nut Material: Bone
• Nut Width: 1.875" (47.6 mm)
• Position Inlays:  Pearloid Dots
• Truss Rod: Dual Action
• Truss Rod Nut: Heel-Mounted Spoke Wheel Adjustment

Electronics

• Pickups: 2x New 4th Generation Noiseless Jazz Bass
• Controls: Master Volume, Pan Pot (Pickup Selector), Treble Boost/Cut, Midrange Boost/Cut, Bass Boost/Cut, Active/Passive Mini Toggle
• Switching: 2-Way Mini Toggle Switch for Active/Passive Mode. In Passive Mode, Only The Volume, Pan and Passive Tone Controls Function. In Active Mode, All Controls Function.
• Special Electronics: 18V Preamp with Active 3-Band EQ

Hardware

• Bridge: 5-Saddle HiMass Vintage (String-Through-Body or Topload)
• Hardware Finish: Nickel/Chrome
• Tuning Machines: Fender "F" Light-Weight Vintage-Paddle Keys with Tapered Shafts
• Pickguard:
• 3-Ply Black (Black)
• 3-Ply Black/White/Black (3-Color Sunburst, Natural)
• 3-Ply Mint Green (Tobbaco Sunburst)
• 3-Ply Aged White Pearloid (Champagne)
• 4-Ply Tortoiseshell (Ocean Turquoise)
• Control Knobs: Vintage Style Black Plastic Jazz Bass
• Neck Plate: 5-Bolt Asymmetrical

Miscellaneous

• Strings: Fender USA, NPS, (Gauges .045 - .125)

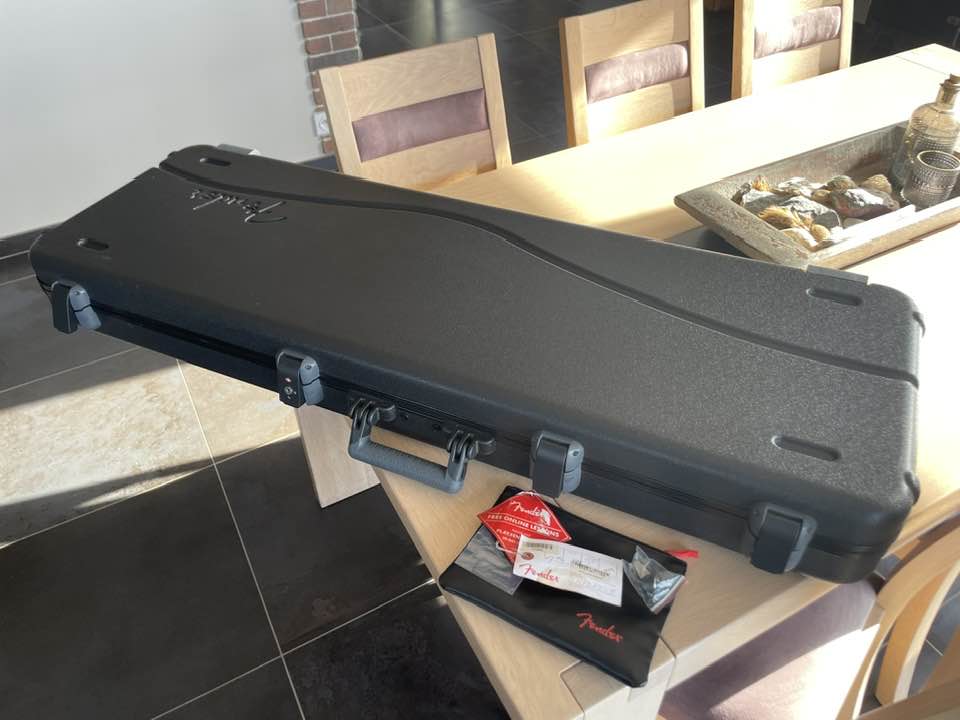

• Case/Gig Bag: Elite Molded Case
