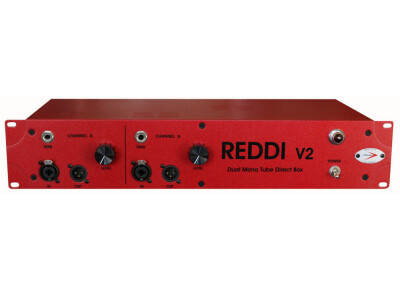

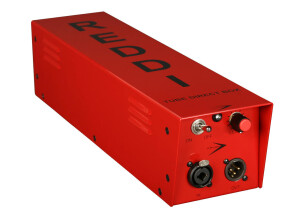

A-designs Reddi v2

• All-tube direct box with custom output transformers.

• Ultra wide frequency range (20Hz-60kHz).

• Neutrik input connectors, balanced XLR out, and 1/4” thru jack.

• Clean and airy high end, warmth, transparency, and ultra high-quality sound.

• Level control.

• Ground lift.

• Red on/off Power Lamp.

• Zero-feedback loop design.

• Massive, custom-wound transformers.

• 6NI-P tubes.

• Low-Z, transformer-balanced output.

• Frequency Response 20Hz – 60kHz

• Input impedance: 1M ohm

• Gain range: 16dB

• Noise (EIN): -126dB

• Output impedance: 600 ohm

• Maximum level: +22dBu

• Distortion THD: > .08 @ 1kHz

• Power Requirements: 120/230VAC – 42W

• Dimensions (W x H x D) 19” x 3-1/2” x 10-1/2”

• Weight 13 lb. (7.54 kg.)
