Apogee Symphony I/O 2X6 Special Edition Module

Ajouter ce produit à

Déposer un avis

Prix public : 1 899 € TTC

Où acheter Symphony I/O 2X6 Special Edition Module ?

Moins

Il n’y a pas de petite annonce pour ce produit.

Alerte nouvelle annonce

Argus 0,00 €

Fiche technique

Créée le 23/01/2018

Fabricant : Apogee
Modèle : Symphony I/O 2X6 Special Edition Module
Série : Symphony I/O modules
Catégorie : Convertisseurs A/N N/A
Autres dénominations : symphonyi o 2x6 specialeditionmodule, symphonyio2x6specialeditionmodule, symphony i o 2x 6 special edition module, symphony i o 2 x6 special edition module, symphonyio2 x6 specialeditionmodule, symphony i o2x6 special edition module, symphony i o 2x6special edition module, 2x6se, 2x 6 se, 2 x6 se

Module d'extension 2x6 analogique pour les interfaces Symphony I/O MkII Thunderbolt et ProTools HD

● Highest Quality Apogee AD/DA converter, exceeding any AD/DA converter available.
● A/D = 124dB (A) dynamic range, -116dB THD+N
● D/A = 131dB (A) dynamic range, -118dB THD+N
● Available in Thunderbolt or HD configurations
● Also available as expansion module for existing Symphony I/O Mk II
● Inputs
- ○ Analog IN: 2 balanced inputs on 2 female XLR connectors
- ○ AES IN: Stereo input on 1 female XLR connector
- ○ Optical IN: Supports ADAT, SMUX & S/PDIF
  - ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
  - SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
  - S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- ○ S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector

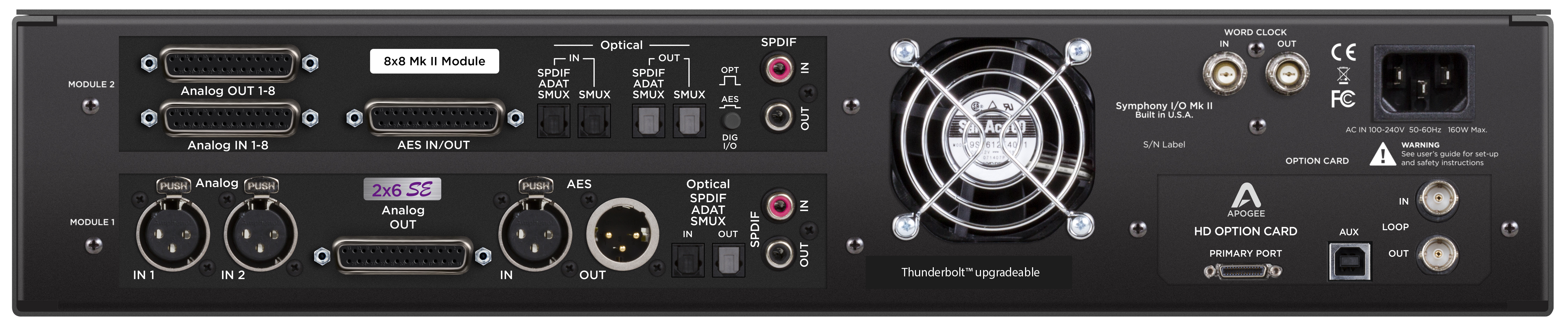

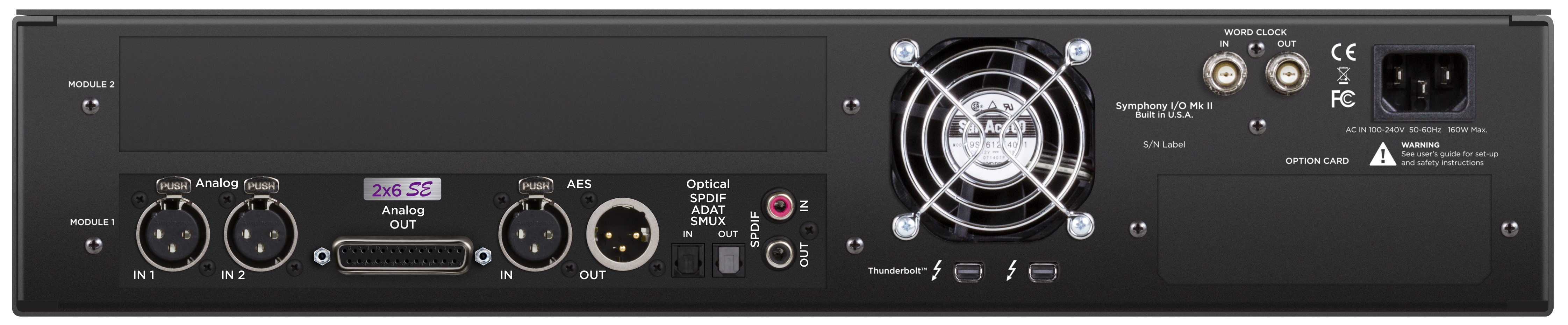

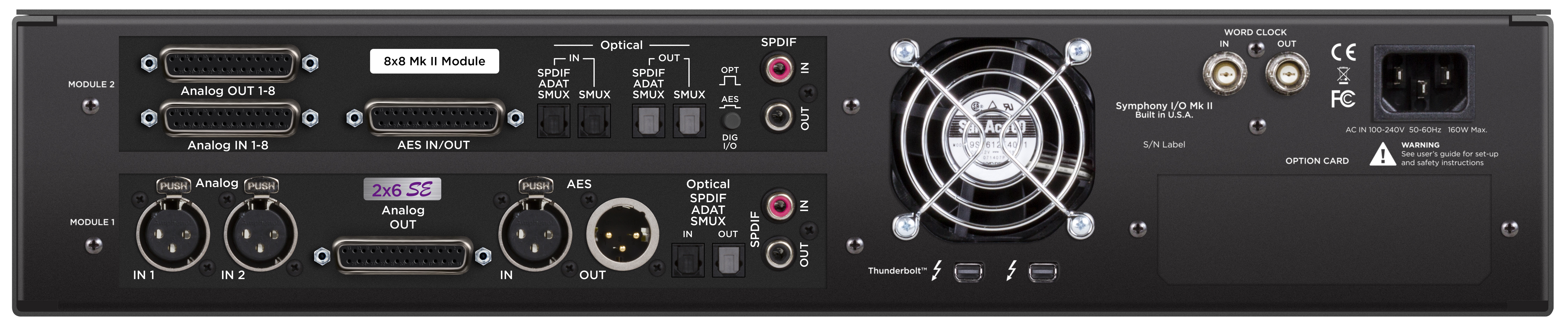

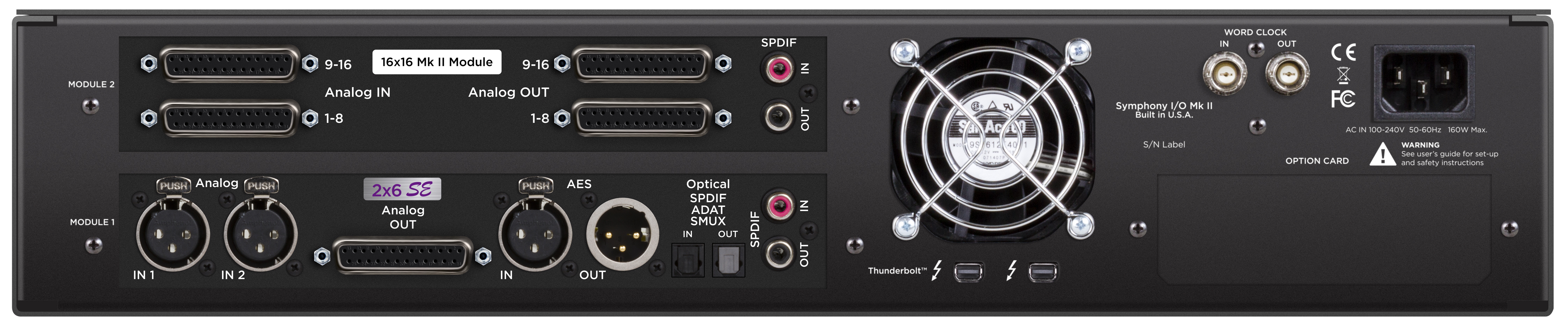

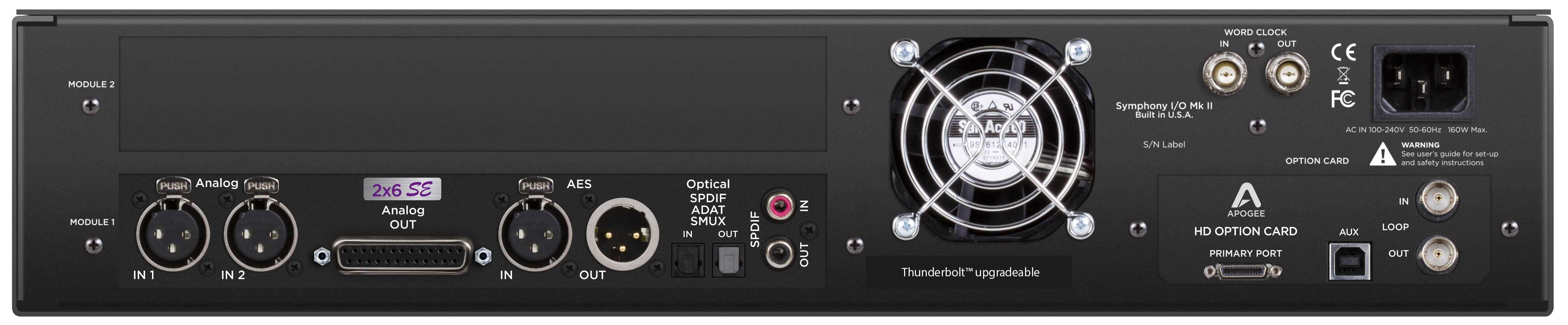

● Outputs
- ○ Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
- ○ AES OUT: Stereo output on 1 male XLR connector
- ○ Optical OUT: Supports ADAT, SMUX & S/PDIF
  - ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
  - SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
  - S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- ○ S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector

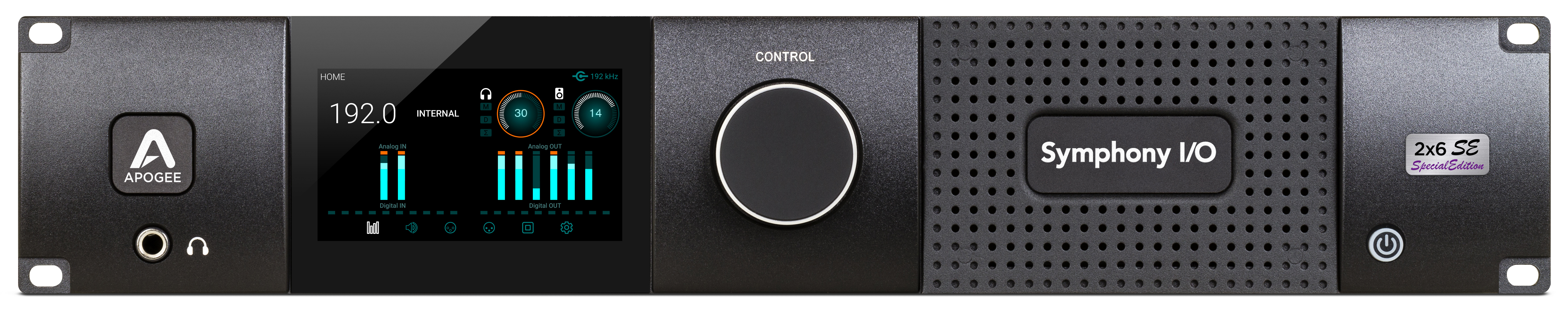

● Full calibration of analog inputs and outputs via front panel or Apogee Control software
