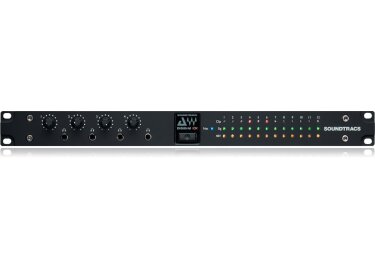

DiGiGrid iOX

1U Rack-mounted
Supported sample rates: 44.1, 48, 88.2, 96, 176.4*, 192* kHz
12 Channel Mic/Line inputs (on XLR/TRS combo)
6 Channel Line outputs (on TRS)
Word Clock I/O
Clock Synchronisation via: Word Clock input, SoundGrid (SoE), Internal
2 SoundGrid ports (RJ45s)
Reset switch
4 Headphone outputs with analogue level knobs
Settings for different broadcast level formats via jumpers on all analogue I/Os
Mic/Line inputs
Input Impedance
Mic: 2K5
Line: 8K0
Gain Range:
Mic -20 TO +60dB in 0.5dB steps
Line -30 to +50dB in 0.5dB steps
Maximum Input Level: Mic: +26dB Line: +36dB
Mic Equivalent Input Noise: >-126dB (150 Ohm source, Gain +60dB)
Harmonic Distortion: typically Frequency Response: +/-0.5dB 20Hz to 20kHz
Channel Separation: Better than 90dB (40Hz to 15kHz)
Line Outputs
Maximum Output Level: +22dBu
Residual Output Noise: Frequency Response: +/-0.5dB 20Hz to 20kHz
Output Impedance: 50 Ohms
Channel Separation: Better than 90dB (40Hz to 15kHz)
Harmonic Distortion: Typically
