Vend Seraph A3

Description

Vend Seraph A3, en état, no refund (I'm moving out)

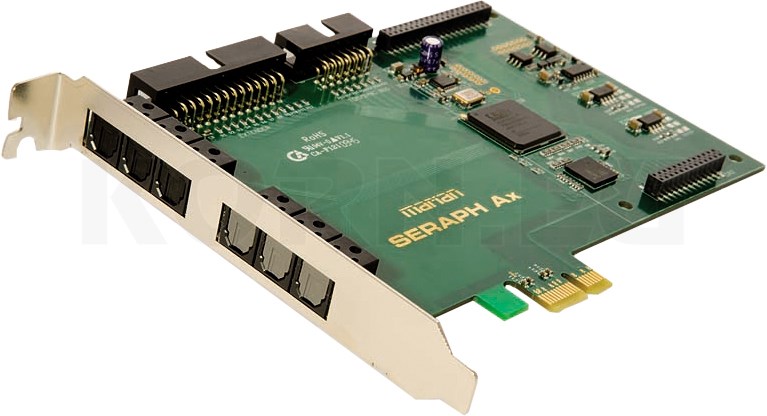

The Marian Seraph A3 MWX is an audio interface without additional load on the computer. It is delivered via PCIe interface is connected. It can be used simultaneously for recording and playback of a total of 64 channels. which makes it clear that it is designed for large tasks.

Features:
3 ADAT inputs (24 channels)
3 ADAT outputs (24 channels)
96 kHz S/MUX support
2 MIDI I/O
Wordclock / Superclock I/O
"Beast" DSP powered
Multi-Card Support
TDM SyncBus
Technical data:
internal
3 ADAT Input
31 Wordclock/Superclock
1 TDM SyncBus
PCIe Audio Interface
1 lane (PCIe 1x) according to PCI Express Base Specification 1.1
PCIe Busmaster DMA with Direct ASIO Support
3 TOSLINK inputs
3 TOSLINK outputs
1 BNC Clock input
1 BNC clock output
Midi Inputs: 2 x via DIN sockets to adapter cable
Midi outputs: 2 x via DIN sockets on adapter cable
+3.3V / 0.65A+12V /0.03A
- 25°C ... +70°C
Specs:
Color: Multi-Colored
Line Outputs: 0
Line Inputs: 0
Mic Inputs: 0
Phono Inputs: 0
Instrument Inputs: 0
digital Output: ADAT
Headphone Out: no
MIDI Inputs: 2 Ports
MIDI Outputs: 2 Ports
Host Port: PCIe
Type: Audio Converter
Theme: Recording and Studio
