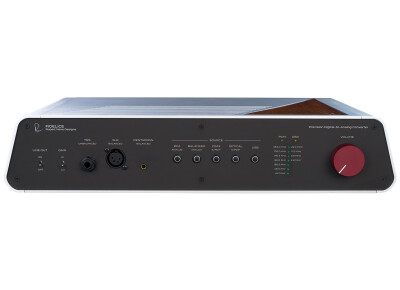

Rupert Neve Designs Precision digital-to-analogue converter

Convertisseur Numérique Analogique de la marque Rupert Neve Designs

Écrire un avis ou Demander un avis

Présentation du produit Présentation

Avis

Comparateur de prix

Petites annonces

Forums 1 1

Actu 1 1

Sommaire - accès rapide

News (1)
Images (3)
Fiche technique (1)

Annonces Precision digital-to-analogue converter

Alerte nouvelle annonce

Forums Rupert Neve Designs Precision digital-to-analogue converter

Rupert Neve Designs lance la gamme Fidelice

News

Rupert Neve Designs lance la gamme Fidelice

La Société Rupert Neve Designs dévoile sa série d'équipement Hi-Fi nommé Fidelice.

26/07/19 2

Images

Fiche technique

Fabricant : Rupert Neve Designs
Modèle : Precision digital-to-analogue converter
Catégorie : Convertisseurs Numériques Analogiques
Fiche créée le : 26/07/2019

CONNECTIONS

Analog Inputs: XLR Balanced, RCA unbalanced
(+4 /-10dB operating levels switchable on the front panel)

Digital Inputs: Coax S/PDIF, Optical S/PDIF, USB (Mac / PC / iOS / Android)

Analog Outputs: XLR balanced (fixed or variable), RCA unbalanced (fixed or variable)

Headphone Outputs: TRS unbalanced, 4-pin XLR balanced, Pentaconn balanced

Firmware Update: Micro USB

Balanced XLR Input to Balanced XLR Output (FIXED Volume)
Source Z = 40 Ω Balanced with 30 ft Output XLR

Input Impedance: 10 kΩ
Output Impedance: 40 Ω
Maximum Input Level (+4dBu Selected): +21.3 dBV
Maximum Output Level: +21.3 dBV
Noise @ FIXED Volume (10 Hz - 22 kHz BW): -101.2 dBV typical
Frequency Response (5 Hz to 116 kHz): +/- 0.1 dB typical
THD+N (@1 kHz): 0.0005% typical

Unbalanced RCA Input to Unbalanced RCA Output (2V RMS Redbook)
Source Z = 470 Ω Unbalanced

Input Impedance: 10 kΩ
Output Impedance: 33 Ω
Maximum Input Level: +19.2 dBV
Maximum Output Level: +19.2 dBV
Noise @ FIXED Volume (10 Hz - 22 kHz BW): -109 dBV typical
Frequency Response (5 Hz to 112 kHz): +/- 0.1 dB typical
THD+N (@1 kHz): 0.0003% typical

Balanced Input to Unbalanced Headphone Output
Source Z = 40 Ω Balanced

Input Impedance: 10 kΩ
Output Impedance: 0.01 Ω
Noise @ Max Volume (10 Hz - 22 kHz BW): -98.2 dBV typical
Frequency Response (5 Hz to 200 kHz): +/- 0.2 dB typical
THD+N (1W into 36 Ω Load @1 kHz): 0.003% typical
THD+N (1W into 16 Ω Minimum Load @ 1 kHz): 0.006% typical

DIGITAL PATH SPECIFICATIONS

Coaxial S/PDIF Input to Balanced XLR Output
(FIXED Volume)
192 kHz SR with Slow Roll-Off Filter

Noise (10 Hz - 22 kHz BW): -96.2 dBV typical
Frequency Response (5 Hz to 23 kHz): +/- 0.1 dB typical
Passband (0.5 Hz to 90 kHz): -3dB typical
THD+N (@1 kHz): 0.0004% typical

Coaxial S/PDIF Input to Balanced Headphone Output
192 kHz SR with Slow Roll-Off Filter

Output Impedance: 0.02 Ω
Noise @ Max Volume (10 Hz - 22 kHz BW): -89.2 dBV typical
Frequency Response (5 Hz to 20 kHz): +/- 0.1 dB typical
Passband (0.5 Hz to 90 kHz): -3dB typical
THD+N (1W into 16 Ω Minimum Load @1 kHz): 0.008% typical

Coaxial S/PDIF Input to Unbalanced RCA Output
(FIXED Volume)
192 kHz SR with Slow Roll-Off Filter

Noise (10 Hz - 22 kHz BW): -107 dBV typical
Frequency Response (5 Hz to 20 kHz): +/- 0.1 dB typical
Passband (0.5 Hz to 90 kHz): -3dB typical
THD+N (@1 kHz): 0.0004% typical

Coaxial S/PDIF Input to Unbalanced Headphone Output
192 kHz SR with Slow Roll-Off Filter

Output Impedance: 0.01 Ω
Noise @ Max Volume (10 Hz - 22 kHz BW): -95.2 dBV typical
Frequency Response (5 Hz to 20 kHz): +/- 0.1 dB typical
Passband (0.5 Hz to 90 kHz): -3dB typical
THD+N (1W into 16 Ω Minimum Load @1 kHz): 0.006% typical
