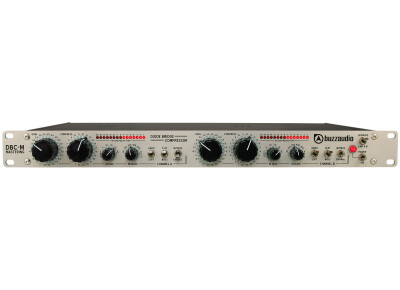

Buzz Audio DBC-M

• Fabricant : Buzz Audio
• Modèle : DBC-M
• Catégorie : Compresseurs de studio
• Fiche créée le : 24/03/2016

1U rack diode bridge compressor for mastering purposes, Mastering version of the popular Buzz Audio DBC-20 diode bridge compressor

• GAIN - 24 position Elma switch that adds gain at the output to correct for lost level with a -2.0 to +10dB range in 0.5dB steps.
• COMPRESSION - 24 position Elma switch that sets the amount of compression.
• ATTACK - rotary switch with 6 settings, FAST (less than 0.5mS)-5mS-10mS-15mS-25mS-50mS.
• RELEASE - rotary switch with 6 recovery time settings, 50mS-100mS-200mS-400mS-600mS and AUTO.
• HARD/SOFT - adds dynamics in soft mode for times when very light compression is required.
• FLAT/BASS - reduces compression sensitivity at low frequencies for more bass punch.
• BYPASS/ENGAGE - hard wire unit bypass to compare compressed and uncompressed signals.
• There is also a handy power ON/OFF switch and the LINK A/B which provides for stereo tracking to prevent image shift when used on the mix buss.
• Maximum Input Level; +27dBu
• Maximum Output Level; +27dBu
• Noise; -80dBu (measured A Weighted with 10dB gain applied)
• Gain; variable -2.0 to +10dB in 0.5 dB steps
• Frequency Response; 6Hz to 400kHz measured no gain reduction
• Harmonic Distortion; At +10dBu input level, no gain reduction; 0.28% @ 100Hz, 0.25% @ 1kHz, 0.15% @ 10kHz
• Harmonic Distortion; With 10dB gain reduction (Release set to 400mS); 1.5% @ 100Hz, 0.5% @ 1kHz, 0.5% @ 10kHz
• Standard Operating Level; +4dBu
• Size; 1 Unit 19" rack mount, (482Wx44Hx250D)
• Power requirements; 230V/115V selectable, IEC detachable power cable.
• Specifications are typical of a production unit and are subject to change without notice.
• 0dBu reference = 0.775 volts RMS.
