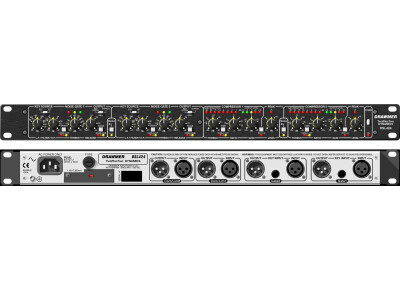

Drawmer DSL424

The DSL424 provides the engineer with a 1U four channel comprehensive toolbox capable of solving the most complex dynamic problems. Incorporated in the 1U package are two industry standard frequency conscious noise gates and two soft/hard knee compressors with variable threshold limiting. The channels may be front panel configured as four individual stand alone processors, a stereo linked pair of comp/limiters with a stereo linked pair of gates. Alternatively, any combination of processing can be achieved by rear panel patching. The DSL424 combines the gates of the DS404 with the comp/limiters of the DL441 to provide a versatile 1U problem solver invaluable in applications where rack space is limited.

Noise Gate

• Variable High Pass and Low Pass Filters for frequency triggering
• Auto attack
• Variable release
• Switchable range with LED status
• Selectable ‘Hard’ (drums etc.) or ‘Soft’ (vocals etc.) modes
• 1/4 inch jack Key Inputs
• Key Listen facility
• Slave linking
• ‘Traffic light’ gate status metering
• Balanced +4dB XLR in/out

Compressor/Limiter

• Switchable Hard/Soft knee compression with variable threshold, ratio and output gain
• Auto attack/release
• Variable ‘zero overshoot’ transparent limiter
• High resolution bargraph metering of gain reduction and input/output level
• Stereo linking
• Balanced +4dB XLR in/out
