- Fabricant : G-Lab

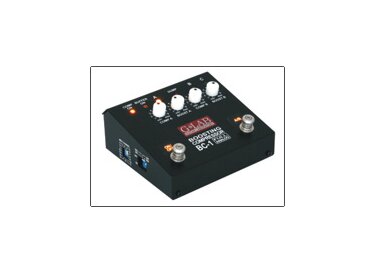

- Modèle : BC-1 Boosting Compressor
- Catégorie : Compresseurs / sustainers Guitare
- Fiche créée le : 15/01/2010
Basic characteristics:
- analog compression circuit with opto component,
- compression circuit matched to the electric and bass guitar in terms of signal and time,
- two sets (A and B) of signal compression and boost regulators,
- compression level indicator DUMP,
- ultra low noise level enabling to work as a booster and/or booster-compressor on crunch and overdrive tones,
- two footswitches: effect ON/OFF and compressor A/B,
- work MODE switch: electric and bass guitar,
- optical TRUE BYPASS and signal buffer mode,
- four work modes of footswitches,
- input sensitivity range switch GAIN,
- MIDI input for connecting foot controllers e.g. G LAB GSC.
Technical parameters
| Dimensions: | depth 120 mm width 120 mm height 60 mm |
| Weight: | 0,56 kg |
| Input impedance: | 1 Mohm |
| Maximal input signal: | 0 dBu (GAIN LOW), - 4 dBu (GAIN HIGH) |
| Output impedance: | 700 Ω |
| Power supply: | 9V DC (8,7 to 9,4V regulated) |
| Current consumption: | 40 mA |
»
