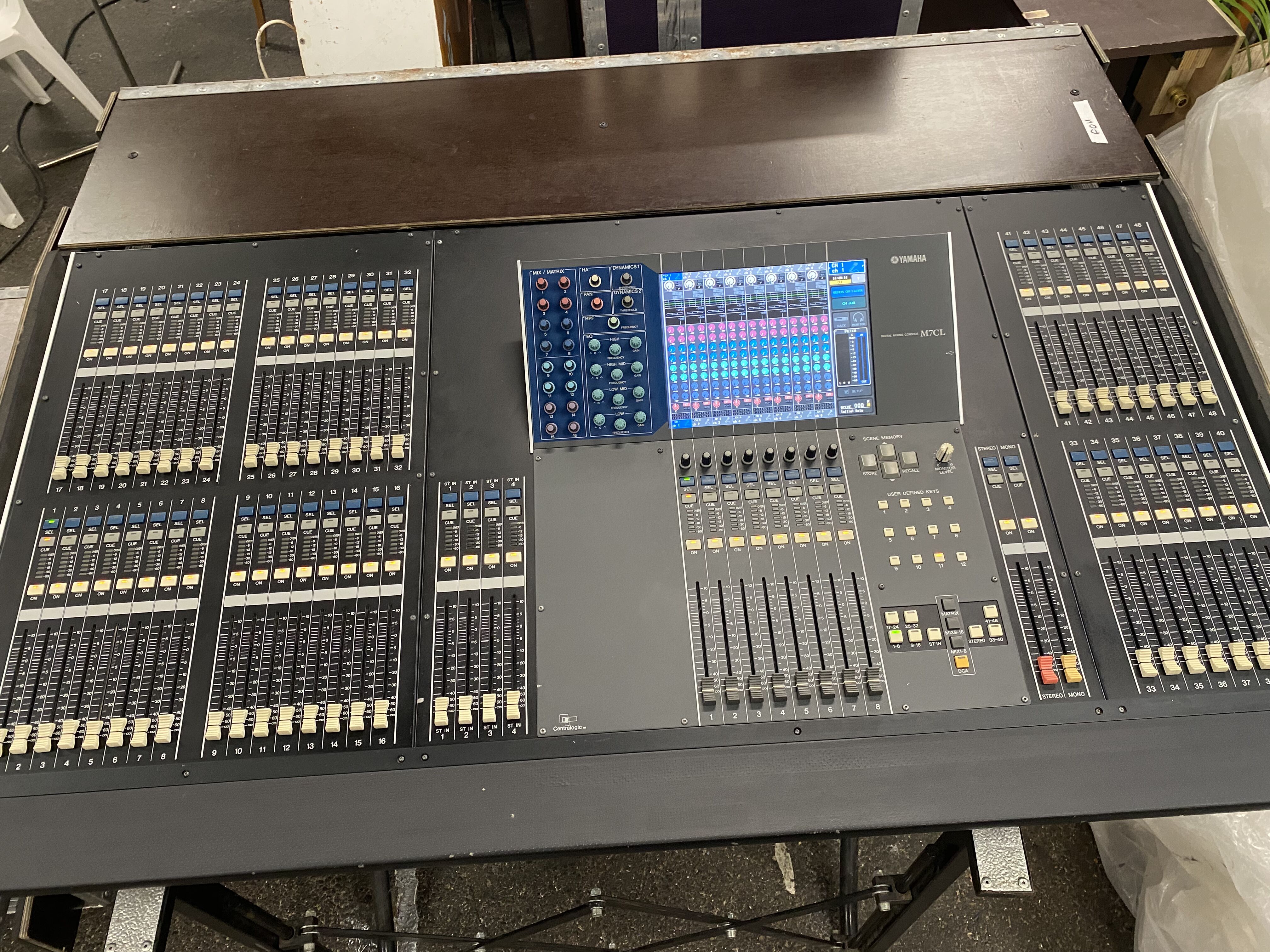

Yamaha M7CL-48ES

Outline

Mixing capability

Mixing channels

48 Mono + 4 Stereo

GROUP

16 MIX (Group/AUX) busses

AUX

16 MIX (Group/AUX) busses

MAIN

Stereo, Mono

MATRIX

8 (Can be used as AUX by "Input to Matrix" function)

DCA/VCA

8

Input channel functions

HPF, Attenuator, 4-band PEQ, 2x Dynamics, Pan (LR or LCR with CSR)

Output channel functions

Attenuator, 4-band PEQ, Dynamics

On-board processors

4x GEQ, 4x GEQ/SPX (GEQ: 31-band or 2x Flex15), 68x Output port delay

I/O

Mic inputs

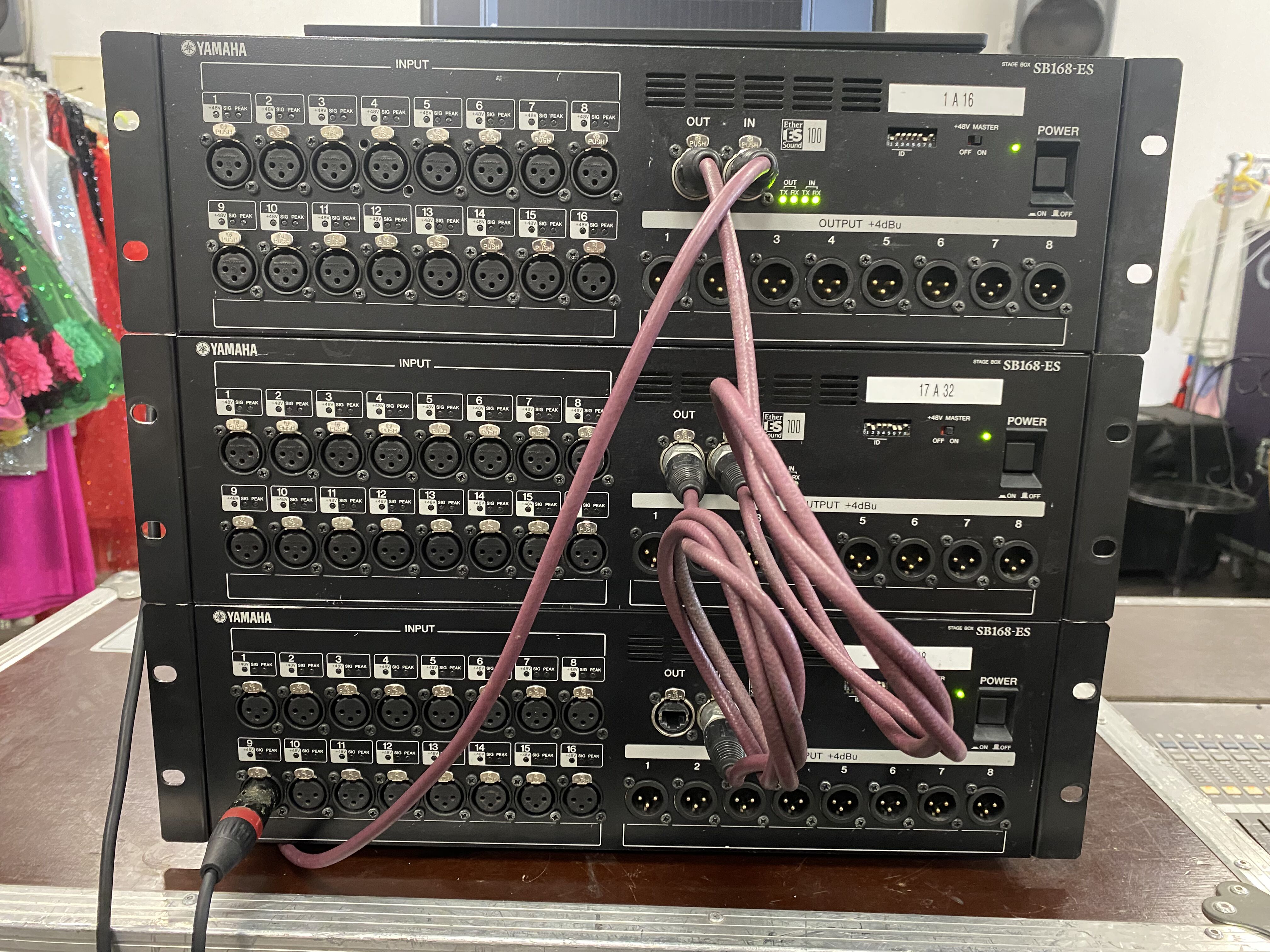

0 (Use SB168-ES for physical I/O)

Line inputs

4x Stereo (Compliant with mic input)

AD converter

24-bit; 128-time over sampling

Line outputs

8 Omni output

DA converter

24-bit; 128-time over sampling

Digital I/O

3x EtherSound, 2tr out

Expansion slots

3x Mini-YGDAI (16-in/16-out)

Control and others

Ethernet, MIDI, Remote (HA remote), USB (Storage/Key), Word clock I/O, 2x Lamp (12V)

Phantom power

-

General specifications

Internal processing

32bit, Accumulator: 58bit

Sampling frequency rate

Internal

44.1kHz, 48kHz

External

44.1 kHz (-2.5%) to 48 kHz (+2.5%)

Signal delay

Less than 2.5 ms (@48kHz)

Total harmonic distortion

Less than 0.05% (20Hz-20kHz)

Frequency response

0, +0.5, -1.5dB 20Hz-20kHz

Dynamic range

DA: 110dB; AD+DA: 108dB

Hum & noise level

Equivalent input noise

-128dBu

Residual output noise

-86dBu

Crosstalk

-80 dB Adjacent Input Channels, Input to Output

Power requirements

AC100-240V 50/60Hz, and/or Use PW800W

Power consumption

150W, 190W (When use with PW800W)

Dimensions

W

1274mm; 50-3/16in

H

286mm; 11-1/4in

D

701mm; 27-5/8in

Net weight

46kg; 101.4lbs

Accessories

Owner’s Manual, AC power cord, Dust cover
