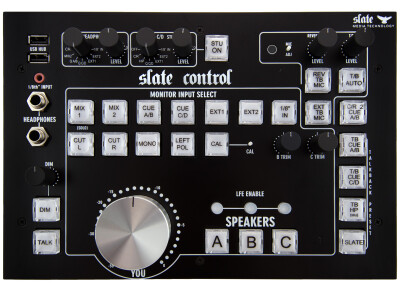

Slate Media Technology Slate Control

• Fabricant : Slate Media Technology
• Modèle : Slate Control
• Catégorie : Contrôleurs de monitoring
• Fiche créée le : 14/11/2016

Contrôleur de monitoring conçu par Paul Wolff (ancien de chez API et Tonelux) qui peut être intégré à une console ou un side-car

• Control Head can be used as independent “table top” module or integrated directly into the RAVEN MTX Mk2 or RAVEN Z3 armrest.
• The Control Head is 7” deep so it can be retrofitted into any older console in the fader section, or into the location of the original monitoring system when refurbishing older consoles.
• 7 Stereo inputs with Solo Bus signal and logic input for console retrofits.
• 3 Speaker Selections with LFE Enable per speaker pair.
• Speaker B and C have trim controls for matching levels with A.
• Multiple Cue Outputs with Talkback and Slate functions.
• Comprehensive Talkback System with Built-In Mic and External Mic Input.
• Reverse Talkback Mic input for 2-way communication with the artist
• Selectable Auto Talkback, when the music stops, it engages TB.
• CAL Mode to pre-set a reference level for the Speakers, disabling the “YOU” main control room volume control.
• CUT, Mono Compatibility and Left Speaker Polarity functions.
• LFE Output with 80/120 Hz, 12 dB/oct, LPF & Direct Output Mode, Polarity and Level Trim.
• DB25 Connections for Inputs and Outputs
• DB9 Connections for VU Aux and Talkback Aux remote functions.
• On-board USB Hub for iLok and phone charging
• 1/8th input for Audio Source Playback

• DB25 Main Inputs
• DB25 Speaker Outputs
• DB25 Cue Outputs
• DB25 Aux I/O
• XLR-M LFE Output
• XLR-F External & Reverse Talkback Input
• Talkback Footswitch Input
• 1⁄4” Local Headphone Line Out
• DB9 Talkback Aux
• DB9 VU Aux
• 25’ DB50 Cable Connection to Control Head
