Alerte nouvelle annonceFiche technique
- Fabricant : Sonifex
- Modèle : RB-AES4X3
- Catégorie : Convertisseurs Numériques
- Poids du colis : 1.6 kg
- Fiche créée le : 02/06/2023
| Cable Drive Capability | |
| The table below sets out the minimum signal amplitude required to drive 100m (cumulative) of 110Ω twisted pair cable, based on the sample rate of the digital audio: | |
| Sample Rate | Minimum Signal Amplitude |
| 32kHz | *2Vpk-pk |
| 44.1kHz | *2Vpk-pk |
| 48kHz | *2Vpk-pk |
| 88.2kHz | 5Vpk-pk |
| 96kHz | 5Vpk-pk |
| * Minimum of 2Vpk-pk is defined by the AES3 format specification. The table below sets out the minimum signal amplitude required to drive 30m (cumulative) of 110Ω twisted pair cable, based on the sample rate of the digital audio: |
|
| Sample Rate | Minimum Signal Amplitude |
| 176.4kHz | 3Vpk-pk |
| 192kHz | 3Vpk-pk |
| Audio Specification | |
| Input & Output Impedances: | 110Ω |
| Insertion Loss: | 0.17dB 1:1, 1.3dB 1:3 |
| Impedance Match: | +/- 2% |
| Max Signal 10 V P-P: | Up to 96kHz |
| Attenuation Loss: | 0.17dB 1:1, 6.2dB 1:3 |
| Connections | |
| Inputs: | 4 x XLR 3 pin female |
| Outputs: | 12 x XLR 3 pin male |
| Equipment Type | |

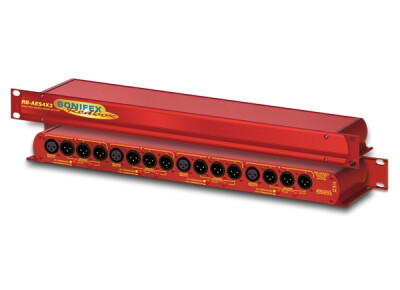

| RB-AES4X3 | Quad 3 way AES/EBU passive splitter XLR connectors |
| Physical Specification | |
| Dimensions (Raw): | 48cm (W) x 10.8cm (D) x 4.2cm (H)(1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U) |
| (Boxed): | 58.5cm (W) x 22.5cm (D) x 7cm (H) 23” (W) x 8.9” (D) x 2.8” (H) |
| Weight: | Nett: 1.0kg Gross: 1.4kg Nett: 2.25lbs Gross: 3.0lbs |
»
