Fiche technique
- Fabricant : Yamaha
- Modèle : DDL3 Digital Delay Line
- Catégorie : Delay / échos
- Fiche créée le : 08/11/2007

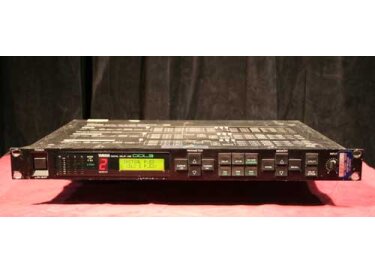

Yamaha Digital Delay Line 3
Triple délai ou filtre actif 3 voies mono
| Frequency Response | +18dBm |
|---|---|
| Outputs/ Number of Outputs | 3 (Electronically Balanced) |
| Outputs/ Nominal Level | +4dBm |
| Outputs/ Output Impedance | 150 Ω |
| Outputs / Maximum output level | +18dBm |
| A/D, D/A Conversion - A/D Conversion Type | Delta-Sigma |
| A/D, D/A Conversion - Quantization | 18 bits |
| A/D, D/A Conversion - Sampling Rate | 50kHz |
| Delay Time | 0 - 1.3 sec. (20 mmsec steps) |
| Memory / Number of Locations | 15:1-9 and A-F |
| Memory- 1-9 | Delay +3 band PEQ |
| Memory- A-F | Delay + Crossover |
| External Control Connector | 9-pin D-SUB (contact closure memory select) |
| Level Meter | Input / Output 1-3 |
| Memory Number | 7-segment LED |
| Parameter | 18-char. x 2-line, backlit |
| Power Requirements | US and Canadian Models: 120V 50/60Hz General Model:220-240V 50/60Hz |
| Power Consumption | 22W |
| Dimensions (W x H x D) | 480 x 45.2 x 324 mm (18-7/8" x 1-3/4" x 12-3/4") |
| Weight | 3.8kg (8 lbs. 6 oz.) |
Distribué par Yamaha Music Europe
»
