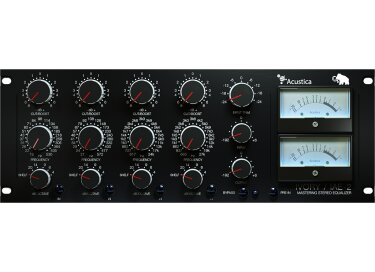

Acustica Audio Ivory IAE-2

• Fabricant : Acustica Audio
• Modèle : Ivory IAE-2
• Catégorie : Egaliseurs paramétriques logiciels
• Fiche créée le : 24/03/2015

Mastering stereo equalizer plug-in for Mac OS X and Windows using the new Core6 Engine for reduced latency and CPU ressources

• Input & Output knobs control plug-in input and output gain.
• The PRE-IN button enables (lamp ON) or bypasses (lamp OFF) the preamp stage of Ivory Eq.
• BYPASS button sets to bypass the plug-in (lamp ON) ) or not-bypasses (lamp OFF)
• Input Trim:  This knob sets the input level from -24dB to +24dB, and is used to control the signal level inside the eq, the output level is than automatically compensated by the same amount of gain. At the first execution of the plug-in, input is set to ensure that you feed an appropriate level from the first stage of your signal path to the final one.
• INPUT – OUTPUT VU METER measure the input (upper meter) and output (lower meter) levels of the plug-in.

Each band is controlled independently by an identical set of controls; sections are Low Frequency 1, Low Frequency 2, High Frequency 1 and High Frequency 2, each section has controls for:

• Q
• Frequency
• Cut/Boost

Parametric Bands/Q: available value for Q are: shelf, 4, 6, 9, 14 and 20 (although these vary depending on gain and bandwidth selection).

Frequencies:
Here the list of available frequencies for each band:

• Low Frequency 1 (Hz): 19, 22, 26, 31, 37, 43, 51, 60, 71, 84, 98, 114, 134, 158, 185, 218, 258, 305, 364, 435, 540;
• Low Frequency 2 (Hz): 21, 24, 29, 34, 41, 48, 57, 67, 79, 92, 108, 126, 148, 173, 203, 240, 280, 332, 400, 477, 572;
• High Frequency 1 (Hz): 617, 727, 862, 1k, 1k2, 1k4, 1k7, 2k0, 2k4, 2k8, 3k3, 3k9, 4k6, 5k4, 6k4, 7k6, 9k0, 11k, 13k, 17k, 24k;
• High Frequency 2 (Hz): 665, 787, 937, 1k1, 1k3, 1k5, 1k8, 2k2, 2k6, 3k0, 3k6, 4k2, 5k0, 5k9, 7k0, 8k2, 9k7, 12k, 14k, 19k, 27k;

Cut/Boost (dB):

• Cut/boost values range from -8dB to 8dB.
