Fiche technique
- Fabricant : KSD
- Modèle : C55
- Catégorie : Enceintes de monitoring actives
- Fiche créée le : 05/02/2009
- Frequency response: 42 - 28,000 Hz ( +/-3dB)
- Sound Pressure Level peak: 109 dB
- Drivers: 6.5" carbon fiber woofer, 6.5" carbon fiber cone as waveguide for 1.45" cloth dome, neodynium magnet
- Weight: 12.5 kg, 27.5 lbs
- Dimensions H 44 x W 22 x D 22 cm, 17 1/3" x 9" x 9"
- Mosfet Bass amplifier output power: 180 W
- Mosfet Treble amplifier output power: 180 W + 80 W
- Mains voltage: 100, 120, 220 or 230 V according to region
- Voltage operating range: +/- 10%
- Input connector XLR female analog, balanced: Pin 1 gnd, pin 2+, pin 3-
- Input impedance: 10 kOhm balanced
- Input Level Control: Variable from -10dB to +6dB
- Crossover frequency, Bass/Treble: 2.5 kHz with Bessel 18dB per octave
- Adjustment in signal processing: Stepless adjustment -6dB to +6dB in bass/treble

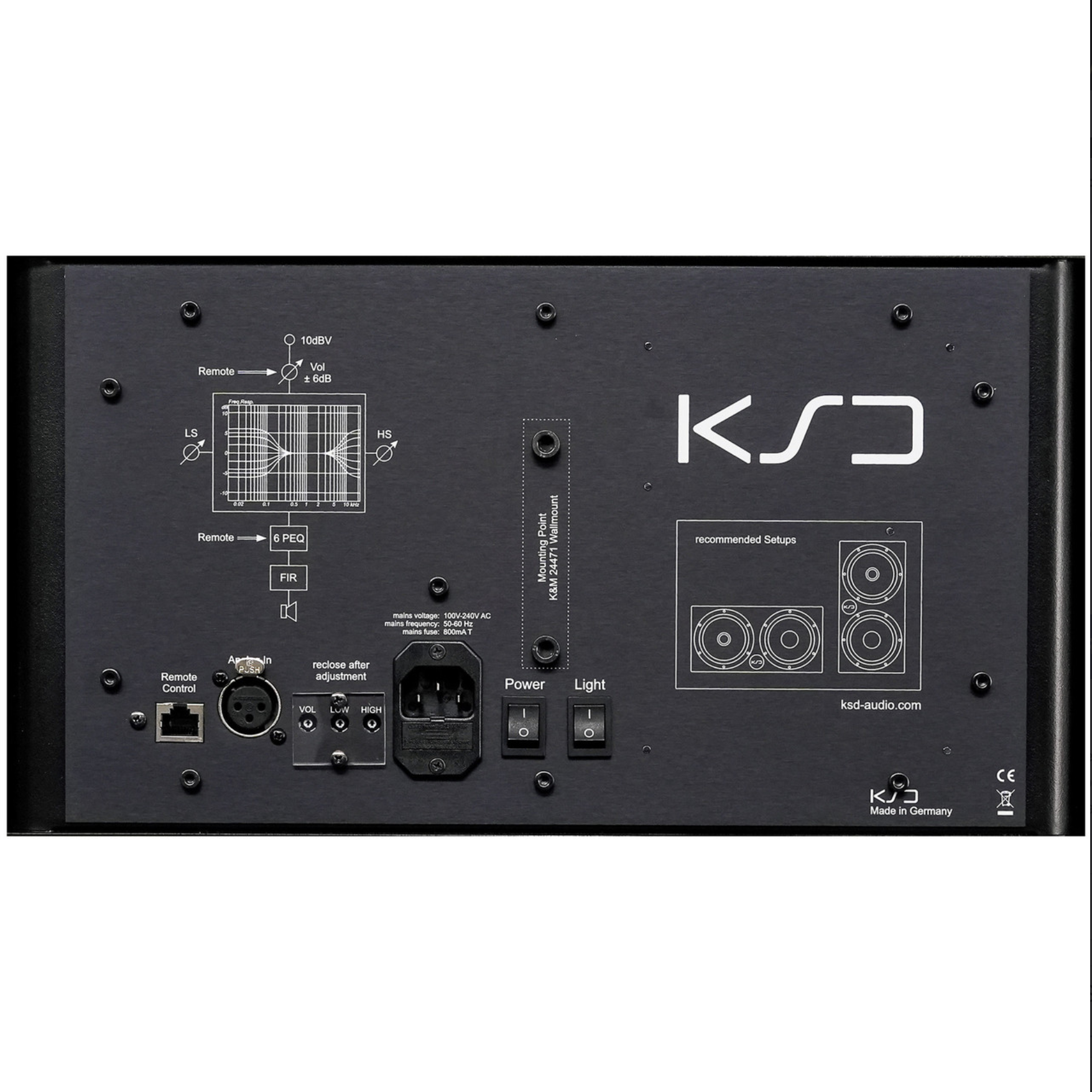

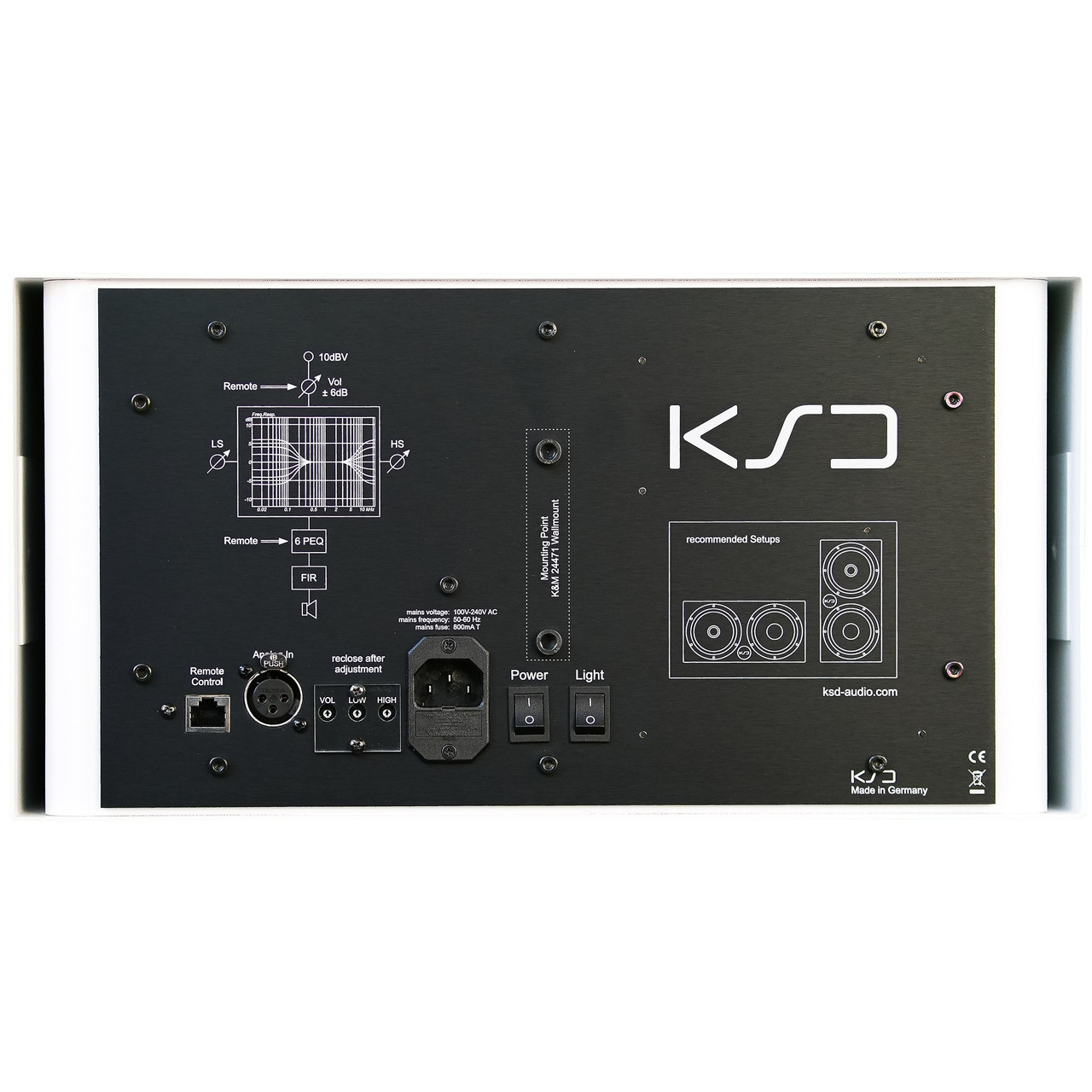

- Controls: gain, bass, high
Distribué par LA MAJEUR
»
