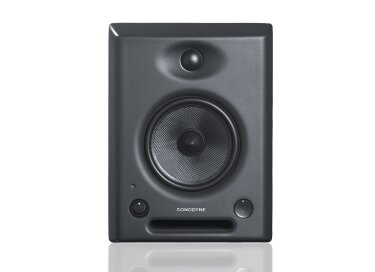

Sonodyne SRP 500

Ajouter ce produit à

Enceinte de monitoring active de la marque Sonodyne appartenant à la série SRP

Déposer un avis

Où acheter SRP 500 ?

Moins

Il n’y a pas de petite annonce pour ce produit.

Alerte nouvelle annonce

Fiche technique

Créée le 12/04/2013

DESCRIPTION	2 way biamplifier speaker
TRANSDUCER COMPLEMENTS	LF: Magnetically shielded 5.25" kevlar cone woofer in die-cast chassis HF: Magnetically shielded 26mm silk dome tweeter with custom waveguide
ENCLOSURE TYPE	Vented, through front-firing aerodynamic port
ENCLOSURE MATERIAL	Pressure die-cast aluminum
OVERALL FREQ. RESP. (±2dB)	58Hz ~ 21kHz
USABLE FREQ. RANGE (-10dB)	50Hz ~ 25kHz
MAX. LONG TERM SPL, 1/2 SPACE	104dB
HORIZONTAL BEAM WIDTH	78° (averaged b/w 5~16kHz)
VERTICAL BEAM WIDTH	62° (averaged b/w 5~16kHz)
TOTAL HARMONIC DISTORTION (@ 95dB SPL)	80Hz ~ 200Hz < 3%; > 200Hz < 1%
AMP. POWER BEFORE CLIPPING	LF: 50W, HF: 50W
S/N RATIO (AT UNITY GAIN)	> 90dB, referred to full output
AMP. THD AT RATED POWER	< 0.04%
INPUT:	Fully balanced through XLR & TRS sockets
INPUT LEVEL FOR 90dB SPL @1M	+5dBU
CMRR	>65dB
CROSSOVER FREQ	2.5kHz
GAIN CONTROL RANGE	-70dB ~ +10dB, 0dB at (detented) centre
LOW SHELVING EQ	50Hz ~ 250Hz, -3dB ~ +3dB in 0.75dB steps
HIGH SHELVING EQ	4kHz ~ 20kHz, -3dB ~ +3dB in 0.75dB steps
BASS ROLL-OFF	100Hz, 12dB/ octave
CONTROLS : FRONT	Power Switch, Gain Control
CONTROLS : REAR	Low shelving, High shelving, Bass roll-off
INDICATOR	Power ON/OFF
PROTECTION	Over current, Overheat , RFI, Switch on/ off transients
POWER REQUIREMENT	230VAC, ±10%, 50Hz; 120V optional
POWER CONSUMPTION	100VA Max.
FINISH	Powder coated (G: grey / W: white / B: black)
DIM. (WxHxD) mm	210 x 279 x 181
NET WEIGHT	6.8kg
INSERTS FOR MOUNTING	2 x M6 inserts on rear, 4 x M6 inserts on bottom
WALL MOUNT BRACKET	SRP WB 2
