Fiche technique

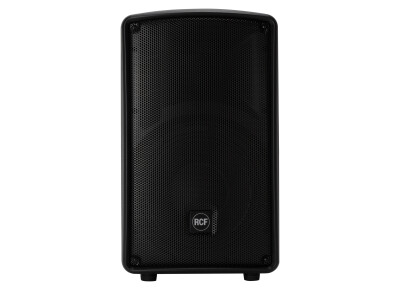

- Fabricant : RCF
- Modèle : HD 10-A MK4
- Série : D
- Catégorie : Enceintes de sono amplifiées
- Poids du colis : 14.2 kg
- Fiche créée le : 01/06/2017
Enceinte de sonorisation amplifiée 400W woofer 10 pouces aigu 1 pouces
Acoustical Specifications
- Frequency Response -3 dB: 50 Hz ÷ 20000 Hz
- Max SPL: 128 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 60°
- Compression Driver: 1", 1.0" voice coil
- Woofer: 10", 2.0" voice coil
Input/Output Section
- Input signal: bal/unbal
- Input connectors: Jack-XLR male
- Output connectors: XLR female
- Input sensitivity: -2 dBu / + 4 dBu
Processor Section
- Crossover frequencies: 1700 Hz
- Protections: thermal, RMS
- Limiter: soft limiter
- Controls: Volume, EQ shape, Mic/line
Amplifier Specifications
- Total power: 800 W PEAK
- High frequencies: 300 W PEAK
- Low frequencies: 500 W PEAK
- Total power: 400 W RMS
- High frequencies: 150 W RMS
- Low frequencies: 250 W RMS
- Cooling: convection
- Connections: powercon
Cabinet
- Cabinet Material: Composite PP
- Hardware: 1 x M10 top, 1 x M10 bottom, 3 x M6 bottom
- Handles: 1 top, 1 side
- Pole Mount/Cap: Yes
- Grille: Steel
- Colour: Black
Physical Specifications
- Height: 527/20.74 mm/inch
- Width: 303/11.92 mm/inch
- Depth: 302.5/11.90 mm/inch
- Net Weight: 11.8/26 kg/lbs
Distribué par RCF France
»
