Fiche technique
- Fabricant : Yorkville

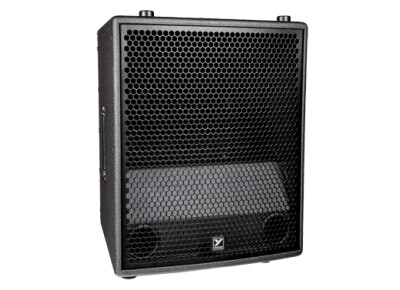

- Modèle : SA 153 (Series Synergy)
- Catégorie : Enceintes de sono amplifiées
- Fiche créée le : 25/01/2019
Active or Passive |
Active |
Program Power (Watts) |
2600 Watts Program (5000 Watts Peak) |
Biampable |
Triamp |
Measured Max SPL (C-Weighted, Max Hold) |
131 dB Cont. 137 dB Peak |
Frequency Response (Hz +/- 3dB) |
55Hz-18k |
Dispersion (°H x °V) |
22.5x45 Asymetrical 10 Up, 35 Down |
Crossover Frequency (Hz) |
400Hz, 7kHz |
Cabinet Configuration |
Patented Synergy Horn and Paraline Lens Technology |
Driver Configuration |
1x15" LF woofer, 1x MF/HF Co-ax Compression |
HF Driver(s) |
1.75" Diaphragm/Voice Coil Annular Co-axial |
HF Program Power (Watts) |
300 Watts |
HF Impedance (Ohms) |
16 ohm Load |
HF Protection |
Peak and Average Limiting |
MF Driver(s) |
3.5" Diaphragm/Voice Coil Annular Co-axial |
MF Program Power (Watts) |
300 Watts |
MF Impedance (Ohms) |
16 ohm Load |
MF Protection |
Peak and Average Limiting |
LF Driver(s) |
1x15" Neo Woofer with 3.5" Voice Coil |
LF Program Power(Watts) |
2000 watts Program (4000 watts Peak) |
LF Impedance (Ohms) |
8 ohm Load |
LF Protection |
Excursion, RMS |
HF Power Amplifier (Watts) |
300W |
HF Amplifier Type |
3-Tier Class H |
MF Power Amplifier (Watts) |
300W |
MF Amplifier Type |
3-Tier Cllass H |
LF Power Amplifier (Watts) |
2000W |
LF Amplifier Type |
Class D |
Cooling Scheme |
Convection |
Power Cable |
Removable Locking Powercon True Input and Loop Thru Output |
Power Switch |
Yes |
Power Consumption (typ/max) |
220 VA / 400 VA |
Inputs |
1 XLR, 2 x XLR Loop |
Input Sensitivity (Vrms Sine) |
Line in 1.4 at center, 0.56 at max |
Level Controls |
Volume |
EQ Controls |
HF/MF Boost select, |
LED Indicators |
Power, Limit, Clip |
Enclosure Materials |
Multiply 15mm Birch Plywood |
Standard Rigging Hardware |
RAIL and LOCKBAR Rigging System (Top and Bottom) |
Stacking Feature |
Interlocking UHMW Feet (Top and Bottom) |
Covering / Finish |
Paint |
Dimensions (DWH xbackW, inches) |
24 x 21 x 26.5 x 12.25 |
Dimensions (DWH xbackW, cm) |
60.9 x 53.3 x 67.3 x 31.1 |
Weight (lbs/kg) |
115/52.1 |
Optional Synergy Series Accessories
Pick Up Bar (SAPICKUPBAR1) |
Single column cabinet hanging hardware (2xSA153 Plus 1xSA315S MAX) |
Flying Bumper (SABUMPER1) |
4 wide flying bumper (8xSA153 Plus 4xSA315S MAX) |
SA153 Cabinet Cover (SA153COVER) |
Will cover 2 Cabinets (stacked) |
SA315S Cabinet Cover (SA315SCOVER) |
Will cover 1 Cabinet |
Cabinet Dolly (SADOLLY1) |
Holds 2 x SA153 stacked or 1 x SA315S |
Specifications subject to change without notice
