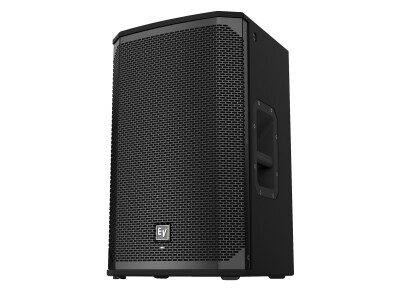

Electro-Voice EKX-12

Name: EKX-12
Brand: Electro-Voice
SKU: 241355

Ajouter ce produit à

Enceinte de sono passive de la marque Electro-Voice appartenant à la série EKX

Déposer un avis

Où acheter EKX-12 ?

Moins

Meilleur prix neuf

Voir plus d’offres

Fiche technique

Créée le 17/07/2015

Axial Sensitivity (SPL, 1 W @ 1 m)	95 dB
Maximum SPL	131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Nominal Impedance	8 Ω
Power Handling (Continuous / Peak)	350 W/1400 W
Frequency Response (-3 dB)	82 Hz - 18 k Hz Full Space Measurement
Frequency Response (-10 dB)	55 Hz - 20 k Hz Full Space Measurement
Recommended High-Pass Frequency	55 Hz
Coverage (Nominal -6 dB) H	90 °
LF Transducer	EVS-12M 300 mm (12 in)
HF Transducer	DH-1M 1-inch titanium compression driver
Crossover Frequency	1.6 k Hz
Minimum Impedance	7.5 Ω
Connector Type	Dual NL4
Enclosure Material	15 mm, plywood with EVCoat
Grill	18 AWG steel with powdercoat
Suspension	(8) M10 threaded mounting points
Height	607 mm (23.9")
Width	375 mm (14.76")
Depth	356 mm (14.02")
Weight Net	17.4 kg (38.36 lbs)
Shipping Weight	21.4 kg (47.18 lbs)
