- Fabricant : Pioneer

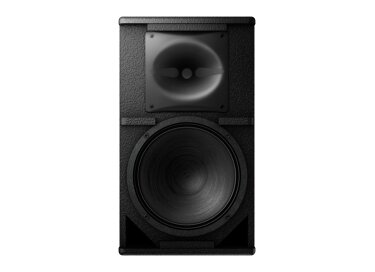

- Modèle : XY-101
- Série : XY
- Catégorie : Enceintes de sono passives
- Fiche créée le : 10/09/2014
| nclosure Type | Two-way passive, reflex-loaded |
|---|---|
| Frequency Response | 70 Hz to 20 kHz |
| Sensitivity (1 W/1 m) | 94 dB |
| Nominal Impedance | 8 Ω |
| Power Handling | 400 W RMS, 800 W Program |
| Maximum SPL | 120 dB cont., 126 dB peak |
| Dispersion | 90 °H × 60 °V, Rotatable |
| Driver Configuration | 10 inch (250 mm) neodymium LF cone driver, 1 inch (25 mm) exit neodymium HF compression driver |
| Crossover | Asymmetric internal passive crossover |
| Connectors | 2 × Neutrik SpeakON™ NL4 |
| Dimensions (W×H×D) | 292 × 508 × 280 mm (11.5 × 20 × 11 inch) |
| Weight | 14 kg (30.9 lb) |
| Rigging and Hardware | 8 × M8 threaded mounting points (4 top/4 bottom), 3 × M8 threaded mounting points on rear, 4 × M8 threaded mounting points on side (2 left/2 right), 4 × M6 threaded points on rear (for wall mount bracket), 1 × flush handle on rear, 1 × 35 mm polemount socket |
| Grille | Hex punched steel |
| Enclosure | 15 mm (0.6 inch) birch plywood |
| Finish | Impact-resistant, Black semi-matt textured |
| Suggested Power Amplifier | Recommended : K2DSP Minimum : M30DHDSP |
| Accessories | polemount socket cover (-W model only) |
