Fiche technique

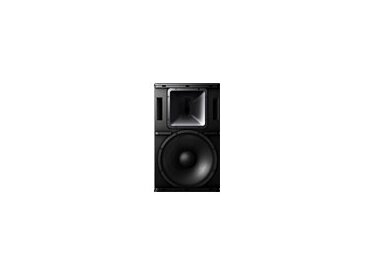

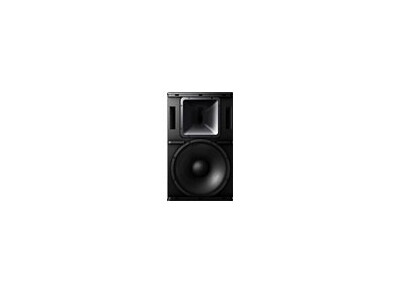

- Fabricant : Pioneer
- Modèle : XY-152
- Série : XY
- Catégorie : Enceintes de sono passives
- Fiche créée le : 10/09/2014
| Enclosure Type | Two-way passive, reflex-loaded |
|---|---|
| Frequency Response | 50 Hz to 20 kHz |
| Sensitivity (1 W/1 m) | 98 dB |
| Nominal Impedance | 8 Ω |
| Power Handling | 650 W RMS, 1300 W Program |
| Maximum SPL | 126 dB cont., 132 dB peak |
| Dispersion | 90 °H × 60 °V, Rotatable |
| Driver Configuration | 15 inch (380 mm) neodymium LF cone driver, 1.4 inch (36 mm) exit neodymium HF compression driver |
| Crossover | Asymmetric internal passive crossover |
| Connectors | 2 × Neutrik SpeakON™ NL4 |
| Dimensions (W×H×D) | 440 mm × 715 mm × 444 mm (17.3 inch × 28.1 inch × 17.5 inch) |
| Weight | 29 kg (63.9 lb) |
| Rigging and Hardware | 8 × M10 threaded mounting points (4 top/4 bottom), 3 × M10 threaded mounting points on rear, 4 × M10 threaded mounting points on side (2 left/2 right), 4 × M8 threaded points on rear (for wall mount bracket), 2 × flush handles (1 left/1 right), 1 × 35 mm polemount socket |
| Grille | Hex punched steel |
| Enclosure | 15 mm (0.6 inch) birch plywood |
| Finish | Impact-resistant, Black semi-matt textured |
| Suggested Power Amplifier | Recommended : K3DSP Minimum : M30DHDSP |
| Accessories | polemount socket cover (-W model only) |
Distribué par Pioneer DJ France
»
