Fiche technique
- Fabricant : Sound Devices

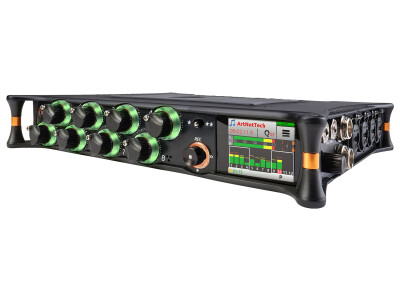

- Modèle : MixPre-10M
- Catégorie : Enregistreurs/Studios de poche
- Fiche créée le : 08/03/2018
Studio portable et interface audio USB de 10 entrées et 12 pistes avec overdub conçu pour les musiciens
- Frequency Response
- 10Hz to 80kHz +/- 0.5dB re 1kHz @ 192kHz sample rate
- THD + Noise
- 0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)
- ADC
- 32 bit precision; 120dB dynamic range min (A-weighted, gain=10dB, fader=0dB)
- Equivalent Input Noise
- -130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance)
- Inputs
- Mic: XLR active-balanced; 4k input Z
- Line: XLR active-balanced; 4k input Z
- Aux/Mic in: 3.5mm TRS, 2-channel unbalanced; 100k input Z
- Line: ¼-inch TRS active-balanced; 4k input Z
- USB Audio: 4 channels
- All inputs fully RF-filtered and overload protected.
- Gain
- Mic input: +6dB to +76dB
- Line input: -20dB to +30dB
- Fader: -inf to +20dB
- Headphone: -inf to +20dB
- Total, Mic-to-recording (max): +96dB
- Aux In (Mic): Gain = +10dB to +40dB
- Aux In (Line): Gain = -10dB to +20dB
- Total Aux Gain including Fader (Mic-to-recording): +60dB
- Maximum Input Level
- Mic XLR: +14dBu (limiters on or off)
- Line XLR/¼-inch: +28dBu (limiters on or off)
- Aux In (Mic): -10dBu
- Aux In (Line): +10dBu
- Low Cut Filters
- 40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.
- Microphone Powering
- Mic XLRs: 48V via 6.8k resistors, 10mA each
- Mic 3.5mm: 3V @ 3k source Z
- Limiters
- Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital.
- DAC feeding Stereo Out, Headphone Out
- 32 bit precision; 115dB dynamic range (A-weighted)
- L/R Out
- TA3 2-channel balanced, 1.1K max output impedance, +10.8dBu max output level
- X1/X2 Out
- 3.5mm TRS stereo unbalanced, 500 ohm output Z, +7.8dBu max output level
- Headphones Out
- 3.5mm TRS stereo unbalanced, for use with any impedance headphones
- USB
- Audio Interface (USB-C): 12-in/4-out; 44.1 to 96 kHz; 16/24-bit; Class-compliant USB 2.0 high speed or ASIO (supplied)
- Mass Storage (USB-C): USB 2.0 high speed
- Keyboard (USB-A): Text entry and control
- Thumbdrive (USB-A): Manual or auto-copy to drive
- Maximum Record Tracks
- 12 Tracks
- Sampling Frequency
- 44.1 kHz
- 48 kHz
- 96 kHz
- 192 kHz
- Bit Depth
- 16, 24
- Recording Storage
- Type: SD, SDXC, SDHC Card, & USB thumbdrive (copy only)
- Max Storage Size: 512 GB (SDXC)
- Card format: FAT32 (32GB or less) or exFAT (>32GB)
- File Types
- Poly WAV (Audio projects)
- Mono WAV (Music projects)
- AAC (Music projects/render)
- Effects
- Reverb Types: Plate, Room, Hall
- Vocal Air (0-100%)
- Remote Control
- Bluetooth Smart: Wireless control using Wingman app (Audio projects only)
- Touch Screen
- 320x256; 1.6-inch, color, sunlight-viewable IPS LCD
- Power
- AA Batteries: 8x AA sled (included). NiMH recommended
- L-Mount: Optional sled for 2x (hot-swappable) Li-ion batteries
- AC Adapter: XL-WPH3 (included): Universal, 45 W in-line AC-to-DC power supply Hirose 4-pin DC plug, with detachable IEC power cord. 100-240, 50/60Hz
- Environmental
- Operating: -20°C to 60°C, 0 to 90% relative humidity; (non-condensing)
- Storage: -40°C to 85°C
- Dimensions and Weight
- Dimensions: 36 mm x 206 mm x 175 mm (H x W x D); 1.375” x 8.125” x 6.875”
- Weight: .91 kg; 32.1 oz. (unpackaged, without batteries)
»
