Fiche technique
- Fabricant : Sound Devices

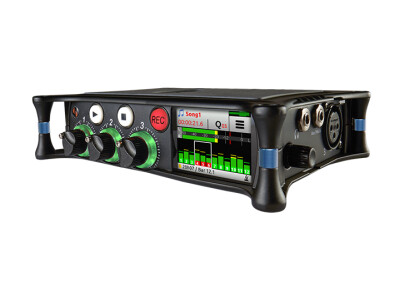

- Modèle : MixPre-3M
- Catégorie : Enregistreurs/Studios de poche
- Fiche créée le : 15/06/2018
Studio portable et interface audio USB de 3 entrées et 12 pistes avec overdub conçu pour les musiciens
- Frequency Response
- 10Hz to 40kHz +/- 0.5dB re 1kHz @ 96kHz sample rate
- THD + Noise
- 0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)
- ADC
- 32 bit precision; 120dB dynamic range min (A-weighted, gain=10dB, fader=0dB)
- Equivalent Input Noise
- -130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance)
- Inputs
- Mic: XLR active-balanced; 4k input Z
- Line: XLR active-balanced; 4k input Z
- Aux/Mic in: 3.5mm TRS, 2-channel unbalanced; 100k input Z
- USB Audio: 2 channels
- All inputs fully RF-filtered and overload protected.
- Gain
- Mic input: +6dB to +76dB
- Line input: -20dB to +30dB
- Fader: -inf to +20dB
- Headphone: -inf to +20dB
- Total, Mic-to-recording (max): +96dB
- Aux In (Mic): Gain = +10dB to +40dB
- Aux In (Line): Gain = -10dB to +20dB
- Total Aux Gain including Fader (Mic-to-recording): +60dB
- Maximum Input Level
- Mic XLR: +14dBu (limiters on or off)
- Line XLR: +28dBu (limiters on or off)
- Aux In (Mic): -10dBu
- Aux In (Line): +10dBu
- Low Cut Filters
- 40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.
- Microphone Powering
- Mic XLRs: 48V via 6.8k resistors, 10mA each
- Mic 3.5mm: 3V @ 3k source Z
- Limiters
- Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital.
- DAC feeding Stereo Out, Headphone Out
- 32 bit precision; 115dB dynamic range (A-weighted)
- Stereo Out
- 3.5mm TRS stereo unbalanced, 500 ohm output Z, +7.8dBu max output level
- Headphones Out
- 3.5mm TRS stereo unbalanced, for use with any impedance headphones
- USB
- Audio Interface (USB-C): 5-in/2-out; 44.1 to 96 kHz; 16/24-bit; Class-compliant USB 2.0 high speed or ASIO® (supplied)
- Mass Storage (USB-C): USB 2.0 high speed
- Keyboard (USB-A): Text entry and control
- Maximum Record Tracks
- 12 Tracks
- Sampling Frequency
- 44.1 kHz
- 48 kHz
- 96 kHz
- Bit Depth
- 24
- Recording Storage
- Type: SD, SDXC, SDHC Card
- Max Storage Size: 512 GB (SDXC)
- Card format: FAT32 (32GB or less) or exFAT (>32GB)
- File Type
- Monophonic WAV
- AAC (render)
- Stereo WAV (render)
- Effects
- Reverb Types: Plate, Room, Hall (48 kHz max sampling rate)
- Vocal Air (0-100%)
- Touch Screen
- 320x256; 1.6-inch, color, sunlight-viewable IPS LCD
- Power
- AA Batteries: 4x AA sled (included); 8x AA sled (optional accessory). NiMH recommended
- From computer: Bus-powered via USB-C port; use MX-USBY cable (optional accessory), connects one USB-C to two USB-A ports
- AC Adapter: MX-PSU (included) Power supply wall adapter w/ USB-C connector; 15W; has 4 adapter plugs for US, UK, AU & Europe
- L-Mount: Optional sled for 2x (hot-swappable) Sony L-type Li-ion batteries
- Environmental
- Operating: -20°C to 60°C, 0 to 90% relative humidity; (non-condensing)
- Storage: -40°C to 85°C
- Dimensions and Weight
- Dimensions: 36 mm x 144 mm x 110 mm (H x W x D); 1.40” x 5.68” x 4.35”
- Weight: .48 kg; 16.8 oz. (unpackaged, without batteries)
»
