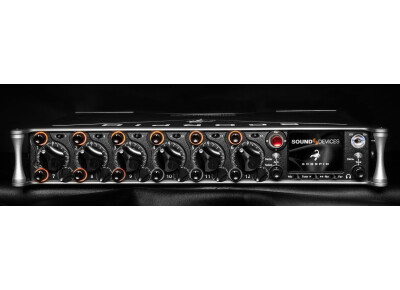

Sound Devices Scorpio

Freq. Response

THD + Noise

Equivalent Input Noise

Processing Engine

Audio Over Ethernet

Inputs

Maximum Input Level

High-Pass Filters

Limiters

Delay Maximum Gain

Outputs

Headphone Outputs

Maximum Output Level(all into 10k load)

A/D converters

Digital Outputs Recording

USB

Wireless

Timecode and Sync

Remote Control

LCD

Power

Environmental

Dimensions (HxWxD)

Weight

Speci cations

• 10Hzto80kHz±0.5dB(192kHzsamplerate,re1kHz)

• 0.005% max (1 kHz, 22 Hz–22 kHz BW, trim @20, fader @ 0, -10 dBu in)

• -131 dBV (-129 dBu) max
(A-weighting, 76 dB gain, 150 ohm source impedance)

• Highly extensible, full FPGA-based audio processing, 3 FPGAs• Six-way ARM multiprocessor system
• 64-bit audio processing precision

• Dante, 32 channels in, 32 channels out
• AES67 compatible
• 1 Gb/s Ethernet, 2 ports, transformer-balanced

• Mic/Line inputs: 16 total, all fully featured; 6 on full-size XLR, 2 on TA3, 8 on TA5

• Mic-level inputs: (XLR, TA3, TA5): Class-A,
discrete differential long-tail pair, 4k ohm input impedance

• Line-level inputs: (XLR, TA3, TA5): active-balanced, 4k ohm input impedance

• AES3 or AES42 available on XLR inputs 1 and 6
• AES42: +10 V, 250 mA available, type-1, auto-ASRC• Rtn A, B, C (3.5 mm/10-pin): unbalanced 2-channel,

4k ohm input impedance
• Com Rtn 1,2 (TA3, 3.5mm) balanced, 1-channel,

8k ohm input impedance
• External Slate Mic (TA5): balanced, 8k ohm input impedance,

menu-selectable 12 V phantom

• Mic: +8 dBu (2.0 Vrms)
• Line: +28 dBu (19.5 Vrms)
• Rtn A, B, C: +18 dBu (6.2 Vrms)
• Com Rtn 1, 2: +24 dBu (12.3 Vrms)
• External Slate Mic: +12 dBu (3.2 Vrms)

• Adjustable 40 Hz to 320 Hz, 18 dB/oct. 1st stage analog (before preamp), 2nd stage digital

• Limiters available at all channels, buses, headphones, for all sample rates• Analog rststage,allsubsequentstagesdigital
• Attacktime:1ms
• Releasetime:adjustable,50msto1000ms

• Threshold: adjustable, -2 dBFS to -12 dBFS• Selectable knee: hard or soft
• Selectableratio:inf:1,20:1

• Channel Adjustable 0-50 ms• Output Adjustable 0-500 ms

• Trim stage (mic input): 76 dB• Trim stage (line input): 36 dB• Fader stage: 16 dB
• Bus stage: 16 dB

• Headphone stage: 20 dB• Mic-to-Line: 108 dB
• Mic-to-Headphone: 112 dB

• XLR (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
• Hirose10-pin(L,R)active-balanced,250/3.2k/120ohms(mic/-10/line)• TA3(X1-X6)active-balanced,250/3.2k/120ohms(mic/-10/line)
• 3.5mm(X7,X8):unbalanced,stereo,1.8kohms

• 1⁄4”, 3.5 mm
• TA5 (along with mic input pins) for single connection to headset + mic• Highoutput,4ohmoutputimpedance,400mW+400mWateach

connector, all individually driven
• Compatiblewithheadphonesofanyimpedance

• Line: +20 dBu (7.8 Vrms)
• “-10”: +6 dBu (1.5 Vrms)
• Mic: -20 dBu (0.078 Vrms)
• X7/X8Out:+6dBu(1.5Vrms)
• Headphoneoutputs(1⁄4”,TA-5,X9/X10):+14dBu(4.0Vrms)

• 32-bit, 120 dB, A-weighted dynamic range typical
• Samplingrates44.1kHz,47.952kHz,48kHz,48.048kHz,88.2kHz,

96 kHz, 192 kHz

• AES3 transformer-balanced, in pairs; 1-2 (XLR-L), 3-4 (XLR-R), 5-8 (Hirose 10-pin A)

• 110ohm,2Vp-p,AESandS/PDIFcompatible

• Internal 256 GB SSD
• TworemovableSDCards
• SimultaneousrecordingtointernalSSDandthetwoSDcards
• exFATformatting
• 36tracks(32isochannels,4buses)
• BroadcastWAVmonophonicandpolyphonic leformat
• 64-bitWAV(RF64)monophonicandpolyphonic;supportfor les>4GB

• USB-C (USB 3.1 type 1) for le transfer of internal SSD, both SD Cards• USB-Ahostforkeyboard,externalcontroller,externalUSBhubs

supported for connecting multiple devices

• Built-in Bluetooth v5.0 BLE (not supported with rev 1.0 release of SD-Remote)

• Modes Supported: Off, Rec Run, Free Run, 24h Run, External, including External Auto-Record and Continuous modes.

• FrameRates:23.98,24,25,29.97DF,29.97ND,30DF,30ND
• Sample/TimecodeAccuracy:0.1ppm(0.25framesper24hours)
• TimecodeInput:20kohmimpedance,0.3V-3.0Vp-p(–17dBu-+3dBu)• TimecodeOutput:75ohmimpedance,5Vp-p(+12dBu)
• WordClockInput:10k/75ohmselectableimpedance,

1-5 V p-p input sensitivity
• WordClockOutput:75ohmimpedance,5Vp-poutput,atSR

• USB MIDI Control - 3rd party fader controllers• SD-Remote Android app
• USB Keyboard
• External Timecode Record Trigger

• 320x240, Trans ective, excellent sunlight visibility
• LargertouchscreendisplayavailableviaUSB-connectedSD-Remoteapp

• External: dual 10-18 V inputs on locking TA4 connectors, pin-4 = (+), pin-1 = (-)• Dualrear-mountSony-styleL-mountbatterieswithchargers
• IdleCurrentDraw:875mA@12V(10.5W)
• Intelligentpower-downofunusedmicpreampsandotherinternalcircuits

• Operating: -20° C to 60° C, 0 to 90% relative humidity (non-condensing)• Storage:-40°Cto85°C

• 5.1cmx32cmx20.5cm(2inx12.6inx8.1in)

• 5.8 lbs (2.63 kg) unpackaged, without batteries
