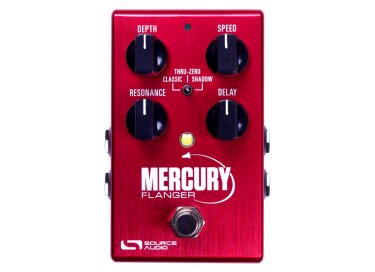

Source Audio Mercury Flanger

• Fabricant : Source Audio
• Modèle : Mercury Flanger
• Série : One
• Catégorie : Flangers Guitare
• Fiche créée le : 07/04/2015

La Mercury est une pédale numérique offrant à la sortie d'usine 3 types de flanger. En vous connectant à l'éditeur Neuro, vous aurez accès à d'autres effets tels que des chorus et des phaser. Elle a 3 emplacements mémoire ainsi que des entrées et sorties stéréo. Vous aurez accès à des fonctionnalités MIDI et 128 presets en y branchant le Neuro Hub (anciennement Soundblox Hub).

General

• Model Number: SA240
• Bypass: True Bypass or Buffered Bypass
• Number of Presets: 3
• Controls:
  • Depth Knob: Controls the depth of the Low Frequency Oscillator (LFO), which determines the strength or prominence of the flanger effect.
  • Speed Knob: Controls the frequency of the LFO, which determines the speed of the flanger effect.
  • Resonance Knob: Controls the resonance of the effect by feeding the output back into the input –0 higher resonance could be described as “intense,” “brighter” or “chime-like.”
  • Delay Knob: Controls the delay time for the delayed signal in the effect – experiment with the delay knob for different effect characteristics.
  • Effect switch: Classic / Thru-Zero / Shadow
• Connectors:
  • Input 1: primary input for guitar, bass, or other instruments. It can also accept line-level inputs.
  • Input 2: audio input or data connection for the Neuro App, or both at the  same time.
  • Output 1: primary output. Connect it to your amplifier, recording interface, or the next device in  your effects signal chain.
  • Output 2: audio output or the daisy-chain data connection for the Neuro App, or both.
  • USB
  • Control Input (3.5 mm): connects to external control devices such as the Dual Expression  Pedal, Reflex Universal Expression Pedal, Neuro Hub, and Hot Hand Motion Controller.
  • Power: 9V DC
• Full MIDI capability (and 128 presets) with the Neuro Hub (formerly Soundblox Hub)
• Power Supply & 1/8” to 1/4” cable for Neuro Mobile App connection included

Technical Data

• Maximum Input Level: +6 dBV = 8.2 dBu = 2 V RMS = 5.6 V p-p
• Input Impedance: 1 MΩ
• Output Impedance: 600 Ω
• 108 dB DNR Audio Path
• 24-bit Audio Conversion
• 56-bit Digital Data Path
• Power: 9V DC (center negative)
• Current Draw: 180 mA
• Dimensions (including knobs): 11.63 x 7.00 x 5.61 cm / 4.58 x 2.75 x 2.21 in
• Weight: 280 grams / 0.625 pounds

Source : Mode d'emploi

Distribué par Mogar
