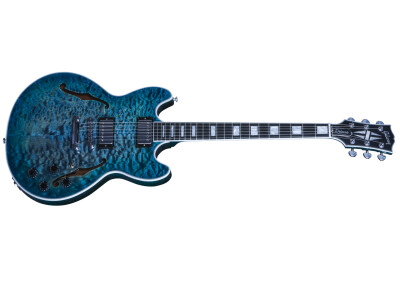

Gibson Midtown Deluxe

Ajouter ce produit à

Mon ancien matos
Mon matos actuel
Mon futur matos

Guitare électrique Hollow Body/Semi Hollow Body de la marque Gibson

Déposer un avis

Vue d’ensemble Vue d’ensemble

Où acheter Midtown Deluxe ?

Moins

Neuf
Occasion

Il n’y a pas de petite annonce pour ce produit.

Alerte nouvelle annonce

Fiche technique

Créée le 08/02/2016

Fabricant : Gibson
Modèle : Midtown Deluxe
Catégorie : Guitares électriques Hollow Body/Semi Hollow Body
Autres dénominations : midtowndeluxe

Top
Wood Species:	Quilted Maple
Pieces:	2
Grade:	AAA
Binding:	5 ply

Back
Wood Species:	Mahogany
Pieces:	multi
Binding:	none

Weight
Weight Relief:	chambered

Materials Used
Glue:	Franklin Titebond 50


Body Contour
Carve:	Flat Top

Neck
Wood Species:	Mahogany
Pieces:	1

Details
Truss Rod:	STANDARD 18.125"
Profile:	Slim taper
Thickness at Fret 1:	.800"
Thickness at Fret 12:	.875"
Average Weight:	1.2 lbs

Peg Head
Type:	SP2
Inlay:	Acrylic Split Diamond and Logo
Peg Head Binding:	5 ply
Logo:	Acrylic
Silkscreen:	none
Headstock Angle:	17 DEGREES

Neck Fit
Joint Angle:	4.0 degrees
Joint Angle Tolerance:	0 deg 0 min 15 sec
Type:	Mortis and Tenon
Adhesive:	Franklin Tightbond 50
Gauges Used:	Pitch Gage

Nut
Style:	Nut
Material:	Tektoid
Width:	1.695
Slots:	E: 0.046" A: 0.036" D: 0.026" G: 0.016" B: 0.011" e: 0.009"

Fingerboard
Wood Species:	Composite
Pieces:	1
Shade:	DARK

Fingerboard Details
Radius:	12 inch
Frets:	22
Nut/End of Board:	1.695" @ nut, 2.260" @ end of board
Scale:	24.75
Binding:	White
Side Dots (Color):	BLACK

Fingerboard Inlays
Style:	Block
Material:	ACRYLIC
Average Weight:	0.26 lbs

Finishes

Ocean Water

Color Code:	OC
Surface Texture:	90 Sheen
Filler:	Walnut
Sealer:	1.0 - 1.5 mils
Top:	Ocean Water
Top Coat:	Hi Gloss Lacquer / 90 Sheen 7-8 mils
Scraped:	FINGERBOARD, SIDES AND NUT, Body perimeter

Root Beer

Color Code:	RO
Surface Texture:	90 Sheen
Filler:	Walnut
Sealer:	1.0 - 1.5 mils
Top:	Root Beer
Top Coat:	Hi Gloss Lacquer / 90 Sheen 7-8 mils
Scraped:	FINGERBOARD, SIDES AND NUT, Body perimeter

Electronics

Pickups	Rhythm		Lead
Style:	BB1		BB 2
Winds/Coil: Screw side/Slug side:	5000/5200		5300/5500
Material of Wire (gauge):	Enamel 42 awg		Enamel 42 awg
Coil Dimensions (per coil):	6.6294 cm x 1.7272 mm / 2.61" x 0.68"		6.6294 cm x 1.7272 mm / 2.61" x 0.68"
Coil Material:	ABS		ABS
Coil Winding Process:	Machine Wound		Machine Wound
Pole Piece Material:	Nickel plated steel		Nickel plated steel
Pole Piece Position from Nut:	47.3075 cm / 18.625"		59.52998 cm / 23.437 inches
Slug Material:	Nickel plated steel		Nickel plated steel
Slug Dimensions (diameter x length):	4.7498 mm x 1.24206 cm / 0.187 x 0.489"		4.7498 mm x 1.24206 cm / 0.187 x 0.489"
Magnet Material:	Alnico 2		Alnico 2
Magnet Position from Nut:	48.26 cm / 19 "		58.7375cm / 23.125 "
Magnet Dimensions:	9.525 cm x 12.7 mm / 2.375" x 0.5"		9.525 cm x 12.7 mm / 2.375" x 0.5"
Cover:	Chrome		Chrome
Qfactor:	5.54		5.51
ResistanceDC:	7697 Ohms		7645 Ohms
Resonant Frequency:	2767.56 Hz		2780.20 Hz

Control Pocket Assembly	Lead Volume	Rhythm Volume
Type:	500K Non-Linear	500K Non-Linear
Peak Voltage:	500V	500V
Range:	0-500K	0-500K
Power Rating:	1/4 watt above 100K ohms	1/4 watt above 100K ohms
Resistance Tolerance:	+/- 20%	+/- 20%
Minimum Resistance:	200 ohms	200 ohms

	Lead Tone	Rhythm Tone
Type:	500K Non-Linear	500K Non-Linear
Peak Voltage:	500V	500V
Range:	0-500K	0-500K
Power Rating:	1/4 watt above 100K ohms	1/4 watt above 100K ohms
Resistance Tolerance:	+/- 20%	+/- 20%
Minimum Resistance:	200 ohms	200 ohms

Capacitors:	Lead Value	Rhythm Value
	.022uF	.022uF

Tuning Keys
Style:	Grover Kidney
Material:	Zamak
Weight:	1 oz

Tuning Keys Details
Tuning Ratio:	14:01
Gear Type:	worm
What is allowable turn:	+/-4 degrees
Plating specs:	chrome
Part numbers:	430-14157 / 158

String Dimensions
E:	1.1684mm / 0.046"
A:	0.9144 mm / 0.036"
D:	0.6604 mm / 0.026"
G:	0.4064mm / 0.016"
B:	0.2794mm / 0.011"
e:	0.2286mm / 0.009"

Bridge
Style:	Tune-o-matic
Material:	Zamak
Plating Specs:	Chrome
Part number:	430-10119
Weight:	1.95 oz

Dimensions of String Slots
E:	1.1684mm / 0.046"
A:	0.9144 mm / 0.036"
D:	0.6604 mm / 0.026"
G:	0.4064mm / 0.016"
B:	0.2794mm / 0.011"
e:	0.2286mm / 0.009"

Tailpiece
Style:	Stop Bar
Compensated:	No
Material:	Zamak
Plating Specs:	Chrome
Part number:	430-10135
Weight:	82.21 g / 2.9 oz.

Output Jack
Style:	1/4" mono

Jack Plate
Style:	Les Paul
Material:	Chrome
Part Number:	430-19467
Weight:	6.0 gm / 0.21 oz.

Strap Buttons
Material:	Aluminum
Plating Specs:	None
Part numbers:	430-19160 / 430-19160E
Weight:	4.0 g / 0.14 oz.

Plastics

Pick Guard
Style:	None
Part Number:	N/A

Truss Rod Cover
Style:	B/W bell w/ White "Deluxe"
Part Number:	430-19380

Knobs
Style:	Black Speed Knobs
Part Number:	430-19267

Dial Pointers
Yes/No:	No

Control Plate(s) (Backplate Cover)
Style:	Black Vinyl
Part Number:	380-12922

Control Plate(s) (SwitchPlate Cover)
Style:	None
Part Number:	N/A

Switch Washer
Style:	None
Part Number:	NA

Trim Rings
Style:	Black Trim Rings Low, and High
Part Number:	440-13884/440-13851

»
