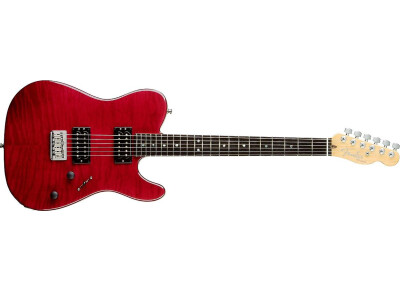

Fender American Deluxe Telecaster FMT

General

• Model Name: American Deluxe Telecaster FMT
• Series: American Deluxe
• Part Number: 010-1670-color
• Color: Amber (820), Tobacco Sunburst (852), Bing Cherry Transparent (861), Cobalt Blue Transparent (862)

Body & Neck

• Body: premium alder with flamed maple top
• Neck: maple, modern "C" profile, satin polyurethane finish
• Fingerboard: ebony, 9-1/2" radius
• 22 medium-jumbo frets
• Scale length: 25-1/2" (648 mm)
• Width at nut: 1.6875" (43 mm)

Electronics

• Pickups: 2 Enforcer humbuckers
• Controls: master volume (with S-1 switch), master no-load tone control
• Pickup switching: 3-position blade and 2-position push/push S-1 (see specifications for settings)
• S-1 Switch Up:
• • Position 1. Bridge Pickup
  • Position 2. Bridge Pickup in Parallel with Neck Humbucking Pickup (Both Coils in Parallel)
  • Position 3. Neck Humbucking Pickup with Coils in Parallel

• S-1 Switch Down:
• • Position 1. Bridge Pickup in Series with Inside Coil of Neck Humbucking Pickup
  • Position 2. Bridge Pickup in Series with Neck Humbucking Pickup (Both Coils in Series)
  • Position 3. Neck Humbucking Pickup with Coils in Series

Hardware

• Bridge: American Tele with 6 stainless steel saddles
• Machine heads: Fender/Schaller Deluxe, cast with sealed tuning machines
• Chrome bridge and tuners
• No pickguard
• Knurled black anodized mini-barrel knobs
