Fiche technique
- Fabricant : RCF
- Modèle : MB10N305
- Catégorie : Haut-parleurs à cône 10" (25 cm)
- Autres dénominations : mb 10n 305, mb10 n305

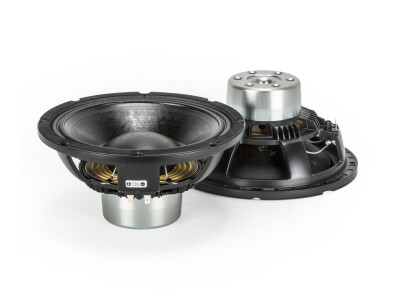

Haut-parleur médium basse 10 pouces en néodyme
- 3-inch, fibreglass inside/outside aluminium voice coil
- 1000W continuous program power handling
- 97.5 dB Sensitivity
- 55 Hz – 3.5 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- M-roll surround and exponential cone geometry
Applications
- The MB10N305 is ideal where is required high power handling, high efficiency and perfect linearity.
- Is the ideal 10" mid-bass woofer for reference high fidelity, high performance midbass application in compact 2 way system.
General Specifications
- Nominal Diameter: 260 / 10 mm/inch
- Rated Impedance: 8 Ω
- Program Power: 1000 W AES
- Power handling capacity: 500 W AES
- Sensitivity: 97.5 dB
- Frequency Range: 55 Hz ÷ 3500 Hz
- Effective Piston Diameter: 210 / 8.27 mm/inch
- Max Excursion Before Damage (peak to peak): 34/ 1.34 mm/inch
- Minimum Impedance: 6.9 Ω
- Voice Coil Diameter: 76 / 3.0 mm/inch
- Voice Coil Material: Aluminium
- Voice Coil Winding Depth: 14 / 0.55 mm/inch
- Number of layers: 1
- Kind of layer: inside / outside
- Top Plate Thickness: 10 / 0.39 mm/inch
- Cone Material: No pressed pulp
- Cone Design: Curved
- Surround Material: Polycotton
- Surround Design: M-roll
Thiele/Small Parameters
- Resonance frequency: 60 Hz
- DC resistance: 5.6Ω
- Mechanical factor: 4.0
- Electrical factor: 0.24
- Total factor: 0.23
- BL Factor: 18.5 T · m
- Effective Moving Mass: 36.5 g
- Equivalent Cas air load: 31 liters
- Effettive piston area: 0.035 m²
- Max. linear excursion (mathematical): 5.0 mm
- Voice - coil inductance @ 1kHz: 0.9 mH
- Half-space efficiency: 2.90%
Mounting information
- Overall Diameter: 260 / 10.24 mm/inch
- Bolt Circle Diameter: 241-246 / 9.5-9.6 mm/inch
- Bolt Hole Diameter: 5.5 / 0.21 mm/inch
- Front Mount Baffle Cut-out: 234 / 9.21 mm/inch
- Rear Mount Baffle Cut-out: 234 / 9.21 mm/inch
- Depth: 116 / 4.56 mm/inch
- Volume occupied by the driver: 1.4 / 0.046 liters/ft³
- Net Weight: 3.2 / 7.05 kg/lbs
Shipping information
- Shipping weight: 4.0 / 8.76 kg/lbs
Source : http://www.rcf.it/fr_FR/precision-transducers/neodymium-low-frequency-transducers/mb10n305
