Alerte nouvelle annonceFiche technique

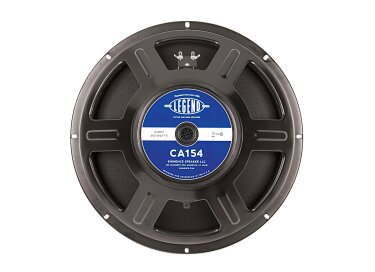

- Fabricant : Eminence
- Modèle : Legend CA154
- Série : Legend
- Catégorie : Haut-parleurs Basses
- Poids du colis : 6.5 kg
- Fiche créée le : 12/04/2012
SPECIFICATION
Nominal Basket Diameter 15", 381mm
Nominal Impedance* 4 ohms
Power Rating**
Watts 300W
Music Program 600W
Resonance 51Hz
Usable Frequency Range 45Hz - 3kHz
Sensitivity*** 96.9dB
Magnet Weight 56 oz.
Gap Height 0.38", 9.53mm
Voice Coil Diameter 2.5", 63.5mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 51Hz
DC Resistance (Re) 2.9
Coil Inductance (Le) 0.8mH
Mechanical Q (Qms) 4.94
Electromagnetic Q (Qes) 0.54
Total Q (Qts) 0.49
Compliance Equivalent Volume (Vas) 108.2 liters / 3.82 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 412cc
Mechanical Compliance of Suspension (Cms) 0.11mm/N
BL Product (BL) 12.2 T-M
Diaphragm Mass Inc. Airload (MMs) 87 grams
Efficiency Bandwidth Product (EBP) 94
Maximum Linear Excursion (Xmax) 5mm
Surface Area of Cone (Sd) 823.7 cm2
Maximum Mechanical Limit (Xlim) 8mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed 40-71 liters / 1.4-2.5 cu.ft.
Vented 45-170 liters / 1.6-6 cu.ft.
Driver Volume Displaced 220.8 cu.in. / 3.62 liters
Overall Diameter 15.15", 384.8mm
Baffle Hole Diameter 13.87", 352.3mm
Front Sealing Gasket Fitted as standard
Rear Sealing Gasket N/A
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 14.56", 369.8mm
Depth 6.25", 159mm
Net Weight 11.9 lbs, 5.4 kg
Shipping Weight 14.1 lbs, 6.4 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core
Basket Materials Pressed Steel basket
Cone Composition Treated Paper Cone
Cone Edge Composition Sealed Cloth Surround
Dust Cap Composition Treated paper dust cap
