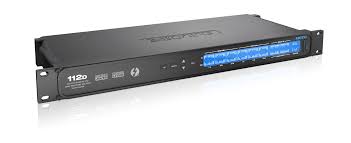

Carte MOTU 112 D
Description
Super carte d'acquisition numérique.Ultra stable et très bon horloge.
Je la vends car j'ai changé tout mon système mais je l'utilisais avec 2 ROSETTA 800 et 1 AD16X et 1 DA16X.
Digital I/O 3x 8-ch banks (24 ch) of ADAT optical at 1x sample rates
6x 4-ch banks (24 ch) of SMUX optical at 2x sample rates
3x 8-ch banks (24 ch) of AES/EBU on 25-pin D-sub
1x BNC MADI in/out (64/56 ch @ 1x, 32 @ 2x, 16 @ 4x)
Total I/O 112 inputs and 112 outputs (224 total) at 1x sample rates
80 inputs and 80 outputs (160 total) at 2x sample rates
16 inputs and 16 outputs (32 total) at 4x sample rates
Computer I/O 1 x Thunderbolt (compatible with 1 and 2)
1 x USB 2.0 audio class compliant
USB 3.0 and iOS compatible
1 x AVB Ethernet (requires OS X Yosemite)
Sync I/O 1 x word clock in
1 x word clock out / thru
Front panel 5 x switches • menu navigation
324 x 24 pixel LCD for level meters / menu nav
1 x AC power switch
Power International 100-240V autoswitching supply
50-60 Hz • 0.5A max
