Fiche technique
- Fabricant : Z&H Designs

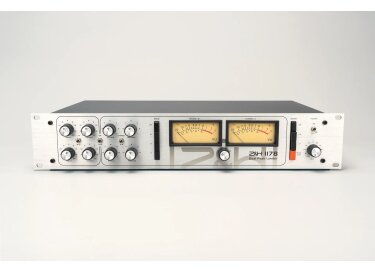

- Modèle : 1178 Stereo Peak Limiter
- Catégorie : Limiteurs de studio
- Date de sortie : juin 2024
- Autres dénominations : 1178 stereopeaklimiter, 1178stereopeaklimiter, 1178stereo peak limiter
|
Frequency Response |
(Compressor and SFE Bypassed, Unloaded) 20Hz to 40kHz +/- 0.5dB typical |
|
Maximum Output Level |
(Compressor and SFE Bypassed, Unloaded) 20Hz to 40kHz +27dBu typical |
|
Total Harmonic Distortion and Noise |
20Hz, +20dBu Less than 0.15% typical 1kHz, +20dBu Less than 0.025% typical 20kHz, +20dBu Less than 0.0075% typical |
|
Compressor |
|
|
Threshold |
-58dBu to +28dBu |
|
Ratio |
4:1, 8:1, 12:1, 20:1 |
|
Blend |
0% to 100% compressor |
|
Attack |
20μs - 800μs |
|
Release |
50ms - 1.1s |
|
AC Power Consumption |
50 Watts Max |
|
Fuse |
5 x 20mm 2A, Fast Acting, Glass |
|
Voltage Selector |
110V, 220V |
|
Noise Floor |
|
|
Product Dimensions (H × W × D) |
3.5'' (8.8 cm) × 1'7.1'' (48.4 cm) × 10.8'' (27.4 cm) |
|
Shipping Dimensions (H × W × D) |
8.8'' (22.3 cm) × 1'10.9'' (58.2 cm) × 1'5.9'' (45.4 cm) |
|
Shipping Weight |
20.9lbs (9.5kg) |
Distribué par Yes Audiovisuel
