Fiche technique
- Fabricant : Adamson
- Modèle : IS10
- Série : IS
- Catégorie : Enceintes d'array
- Autres dénominations : is 10

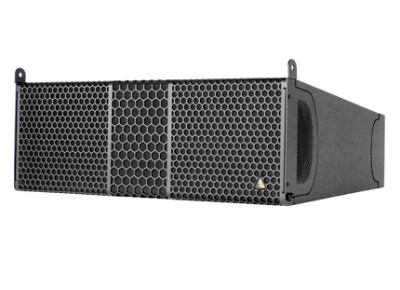

Enceinte d'array passive de deux voies full range de 2 x 10" pour les installations fixes et le touring, employant la technologie Controlled Summation (brevet en cours)
| Frequency Range (+/-3 dB) | 60 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 110° x 10° |
| Maximum Peak SPL** | 141.3 dB |
| Components LF | 2 X ND10-LM |
| Components HF | Adamson NH4TA2 4” Diaphragm / 1.5” Exit Compression Driver |
| Nominal Impedance LF | 8 Ω |
| Nominal Impedance HF | 8 Ω |
| Power Handling (AES / Peak) LF | 700 / 2800 W |
| Power Handling (AES / Peak) HF | 160 / 640 W |
| Rigging |
Integrated Rigging System |
| Connection | 2x Speakon™ NL4 or Barrier Strips |
| Height Front (mm / in) | 300 / 11.8 |
| Height Back (mm / in) | 175 / 6.9 |
| Width (mm / in) | 737 / 29 |
| Depth (mm / in) | 518 / 20.4 |
| Weight (kg / lbs) | 25.6 / 56.5 |
| Supported Processing | Lake |
»
