- Fabricant : Amate Audio
- Modèle : X12CLA
- Catégorie : Enceintes d'array
- Fiche créée le : 14/11/2016

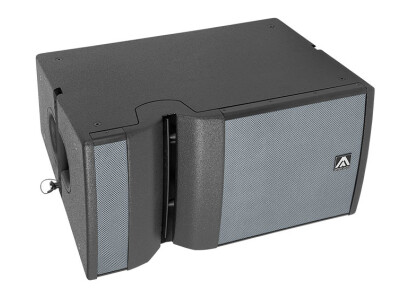

Enceinte d'array de 12" amplifiée avec DSP et contrôlable à distance via une application mobile
| Amplifier (program power) | 1000 W (LF) + 500 W (HF) – Class D Bi-amplified |
| Input Sensitivity | 8 dBu – 1.94 V |
| Input Impedance | 20 KΩ Balanced |
| Mains | Universal switch mode Power Supply 85-265 V / 45-65 Hz |
| Average current draw | 2.1 A (Heavy duty musical program) |
| SPL (1m) | 129 dB continuous, 132 dB peak |
| Built-in DSP | 48 bit |
| AD/DA converters | 24 bit – 96 KHz |
| Presets | Built-in presets to cover the most standard applications + 23 configurable user memories |
| Frequency response (-10 dB) | 58 Hz – 19 kHz |
| Components: | |
| LF-MF | 12″ neodymium woofer (3.5″ voice coil) |
| HF | 2.5″ titanium diaphragm neodymium driver |
| Directivity (HxV) | 100º x 15º |
| Dimensions (HxWxD) | 352 x 640 / 680 (including ball lock pins) x 485 mm |
| Weight | 31.5 kg |
| Finish | Multilayer baltic birch plywood with high resistant black Polyurea® coating |
| Grille | 1.5 mm steel with grey micro-foam cloth |
| Rigging | Stainless-steel integrated rigging bars |
| Connectors | 1x XLR input / 1x XLR link / 1x AC PowerCon input / 1x AC PowerCon link / 1x EtherCon RJ45 input / 1x EtherCon RJ45 link |
»
