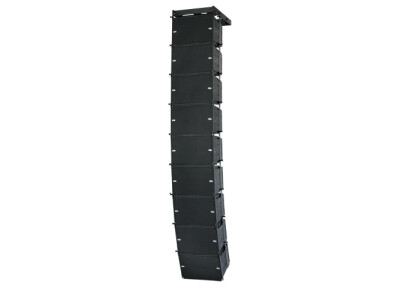

DVA T12, Enceinte d'array de la marque dB Technologies appartenant à la série DVA.
Speaker Type | 3-Way Active Line Array Module |
Frequency Response [+/- 3dB] | 60 - 19.000 Hz |
Max SPL | One Unit: 136 dB |
HF | 3x1 " |
Type HF | Neodymium Compression Driver |
Voice Coil HF | 1.4 " |
Directivity | 100x10 ° |
Horn | Integrated CD Horn |
MF | 2x 6.5 " |
Type MF | Neodymium Sealed Basket Phase Plug Horn Loaded |
Voice Coil MF | 2 " |
LF | 12 " |
Type LF | Neodymium |
Voice Coil LF | 3 " |
Amp Technology | G2 digipro |
Amp Class | Class D |
Power Supply | 1500 W, PFC SMPS |
HF Amp | 350 W/RMS |
MF Amp | 350 W/RMS |
LF Amp | 710 W/RMS |
Cooling | Convection |
Controller | DSP 56 bit |
AD/DA Converter | 24 bit/96 kHz |
System Presets | 8, HF/Low-mid correction |
Limiter | Dual Active Limiter Multibandlimiiter RMS, Peak, Thermal |
Crossover Frequency MF-HF | 1800 Hz |
Slope MF-HF | 24 dB/Octave |
Crossover Frequency LF-MF | 420 Hz |
Slope LF-MF | 24 dB/Octave |
Signal Input | 1x XLR fem, sym |
Signal Output | 1x XLR male, sym. |
Network | RDnet remote control RJ45 connector IN/OUT |
Power Socket | 1x Powercon In 1x Powercon Out |
Voltage Range | 90 - 240 V |
Housing | Polypropylen PP Aluminium reinforced |
Housing Design | Trapezoidal 10° |
Color | Black |
Handles | 1x per side |
Front Grille | 1.5mm metall grille with acoustic foam in back |
Rigging Points | Integrated rigging hardware |
Width | 580 mm (23.2 in) |
Height | 386 mm (15.44 in) |
Depth | 430 mm (17.2 in) |
Weight | 29,9 kg (63.93 lbs) |
(Source : http://www.dbtechnologies.com/)
