Enceinte d'array de la marque Martin Audio appartenant à la série Wavefront Precision

Déposer un avis
Où acheter WPC ?
Moins
  • Neuf
  • Occasion
Aucun revendeur ne propose ce produit pour le moment.
Il n’y a pas de petite annonce pour ce produit.
Alerte nouvelle annonce

Fiche technique

Créée le 04/04/2017

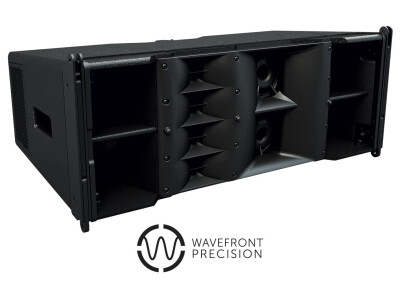

La WPC (Wavefront Precision Compact) est une enceinte d'Array Bi-Amp 3 voies. Elle est sortie en 2017.
TYPE Three-way, bi-amp line array element
FREQUENCY RESPONSE (5) 65Hz-18kHz ± 3dB
DRIVERS
  • LF: 2 x10” (250mm)/2.5” (63mm) voice coil, long excursion,
    vented pole, neodymium magnet drivers, Hybrid® slot-horn loaded
  • MF: 2 x 5” (125mm)/1.5” (38mm) coil, neodymium magnet drivers, horn loaded
  • HF: 4 x 0.7” (19mm) exit neodymium magnet compression drivers, horn loaded
SYSTEM RESOLUTION 1 to 3 enclosures per amplifier channel
MAXIMUM SPL (9) 135dB peak
NOMINAL IMPEDANCE
  • LF: 8Ω
  • MF + HF: 8Ω
DISPERSION (-6dB)
  • 100º horizontal (-6dB), 130º horizontal (-10dB)
  • 10° vertical
CROSSOVER 440Hz active, 4.4kHz internal passive
ENCLOSURE Vertical trapezoid with 5º wall angle, multi-laminate birch and poplar-ply construction
FINISH Black textured paint
PROTECTIVE GRILLE Black HEX perforated steel
CONNECTORS 2 x NL4 type
INPUT CONNECTIONS
  • LF: 1+/1-
  • MF + HF: 2+/2-
FITTINGS
  • 3-point rigging system
  • 2 x side pocket handles
  • 2 x rear grip handles
FLOWN ARRAY MAXIMUM 16 enclosures in single array
DIMENSIONS
  • (W) 772mm x (H) 319mm x (D) 421mm
  • (W) 30.4in x (H) 12.6in x (D) 16.6in
WEIGHT 35kg (77.1lbs)

Source : https://martin-audio.com/products/loudspeakers/wpc
