Fiche technique
- Fabricant : WorxAudio

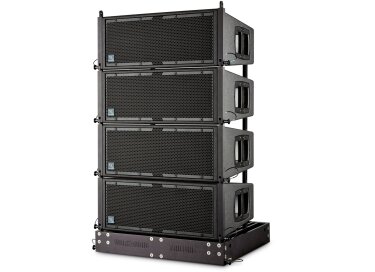

- Modèle : XL1
- Catégorie : Enceintes d'array
- Autres dénominations : xl 1, xl1ip, xl 1i p, xl1 i p, xl1 ip
2-way line array loudspeaker for install and touring, with a choice of powered or passive versions
| Frequency Response (-3dB)1 | 65 Hz – 18 kHz ± |
| Frequency Range (-10dB) | 50 Hz – 20 kHz |
| Recommended High-Pass | 60 Hz – with minimum 24 dB / octave (4th order) slope |
| Nominal Dispersion @ -6dB | Horizontal: 160 Degrees Vertical: 10 Degrees |
| Recommended Crossover Frequency | 1.2 kHz (acoustic, active, external DSP) |
| Long Term Power Handling2 | Low Frequency 500 W (2000W peak)Low Frequency 150 W (600W peak) High Frequency |
| Nominal Impedance | BiAmp LF: 8 ohms BiAmp HF: 8 ohms |
| Max P SPL @ 1 Meter4 | 126 dB SPL (129 dB SPL peak) |
| Transducers | |
| LF: 8” (203.2mm) x 2 | 2” (50.8) voice coil |
| HF: 1.4” Exit (35.56mm) x 1 | 3” (76.2) voice coil |
| Physical | |
| Enclosure | Baltic birch plywood, engineered plastics, and aluminum frame |
| Finish | Two-part spray catalyzed Polyurea coating on plywood |
| Grill | 14-gauge (1.0 mm) perforated steel, powder-coated finish, black |
| Environmental | Indoor use only (Outdoor coatings available for weatherization) |
| Connectors | Two (2) parallel-wired NL4 Neutrik® Speakon® connectors |
| Power Amp Connectors | Neutrik® PowerCon (AC) XLR M/F (In/Out) |
| Suspension/Mounting | TrueAim® Tour side rigging; optional array frame accessories |
| Dimensions | 10.25” H x 24.5” W x 18” D (260.35 mm x 622.3 mm x 457.2 mm) |
| Net Weight | 59 lb. (26.76 kg) |
| Shipping Weight | 65 lb. (29.48 kg) - approximate with carton |
| Product Versions | XL1i-BA, XL1i-P, XL1T-BA, XL1T-P |
| Digital Power Amp | 500W (x1) LF, 500W (x1) HF Dante Connectivity Digital Signal Processing XLR Transformer Isolated I/O AC Power Con I/O |
»
