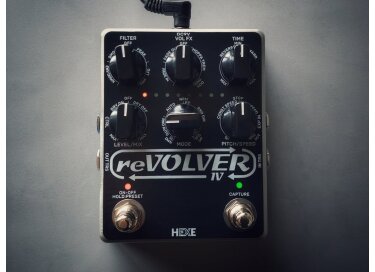

Hexe reVOLVER IV

Looper de la marque Hexe

Écrire un avis ou Demander un avis

Présentation du produit Présentation

Avis

Comparateur de prix

Petites annonces

Forums

Annonces reVOLVER IV

Alerte nouvelle annonce

Fiche technique

Fabricant : Hexe
Modèle : reVOLVER IV
Catégorie : Loopers
Fiche créée le : 05/08/2025

HEXE - reVOVER IV

Micro looper / sound explorer pedal.

Continuing the reVOLVER legacy, the model IV comes with stereo in and outs, 47 seconds sample buffer, more built in effects and highly interactive control options.

CONTROLS:

PITCH/SPEED:

Controls the setting for both pitch shifters. To help with the navigation, the status led bar briefly shows knob position when changing the setting.

Constant speed range: sets the pitch without changing the length of the sample. The range is from natural pitch down to full stop with small dead zones around the -5, -7 semitones and octave down points.
MID position: full stop.
Variable speed range: controls the play speed parameter. Dead zones available at -1 octave, natural pitch, +1 and +2 octaves.
MAX position: activates the random octave mode. The pitch is randomly chosen between 1 octave down (and 2x slower) and the natural pitch.

TIME:

Controls the played sample length and the play direction. The MIN and MAX positions correspond to the full recorded length of the sample. The range is scaled on each new sample capture.

Range from 0% to 50%: sample length in reverse play mode.
Range from 50% to 100%: sample length in forward play mode.

VOL FX:

Controls various volume based effects. To help with the navigation, the status led bar briefly shows knob position when changing the setting.

Range from 0% to 25%: fade in effect.
Range from 25% to 50%: fade out effect.
MID position: all volume effects off.
Range from 50% to 99%: Square wave "choppa" tremolo rate control.
MAX position: activates the random ring modulator effect.

FILTER:

Controls the filter section on the pedal. To help with the navigation, the status led bar briefly shows knob position when changing the setting.

Range from 0% to 25%: envelope down smooth lowpass, start cutoff frequency control.
Range from 25% to 50%: smooth lowpass filter manual control.
MID position: filter off.
Range from 50% to 75%: Peak lowpass manual control.
Range from 75% to 99%: Peak lowpass + LFO, rate control.
MAX position: activates the random sample&hold filter effect.

LEVEL/MIX:

Controls the wet signal (loop) volume, either with dry signal enabled or disabled.

(Revision "E"/2025)

Range from 0% to 50%: WET signal volume, DRY signal mixed in (analog pass through).
MID position: WET signal muted.
Range from 50% to 100%: WET signal volume, DRY signal muted.

MODE:

Sets one of the 7 available working modes. The auto retrigger modes require to press the Capture in order to start the process. To help with the navigation, the status led bar briefly shows knob position when changing the setting.

MIN position: Automatic slow down mode. Can be restarted by changing the PITCH/SPEED parameter.
Range from 1% to 25%: Auto trigger mode with randomized interval and sample length, which can be further scaled using the TIME knob.
Range from 25% to 50%: Auto trigger mode with constant interval and sample length (also scaled using the TIME knob) .
MID position: Normal loop mode.
Right past the MID position: Ping-Pong mode. The loops is played back and forth.
Range from 55% to 99%: random Ping-Pong mode, the play direction is randomly reversed with the knob controlling the flip time range.
MID position: Automatic speed up mode, ends with +2 octaves pitch. Can be restarted by changing the PITCH/SPEED parameter.

EXPRESSION PEDAL:

reVOLVER IV can hugely benefit from using it with an expression pedal. Adding it extends all the 8 presets with up to 5 different sounds per preset. A special "Heel Capture" mode can be activated making the heel position work as pressing the Capture footswitch.

reVOLVER IV accepts expression pedals with a linear potentiometer (do no use a volume pedal) with values in range 10k-50k Ohm and the following polarity:

TIP - pot wiper, control signal.
RING - pot top/max terminal, supply voltage.
SLEEVE - pot bottom/min terminal, ground.

EXTERNAL FOOTSWITCH:

A dual momentary type external footswitch further extends the pedal's toolset. In default mode, the footswitch emulates an instant jump to the expression pedal's toe or middle position. This can be used as quick sound modifier, applied even if the expression pedal is plugged in. Both footswitched can be configured as latching or momentary individually for each of 8 presets.

The second mode is the "Mirror" mode, where the external footswitch duplicates the operation of the onboard ON-OFF and CAPTURE footswitches.

TECHNICAL INFO:
