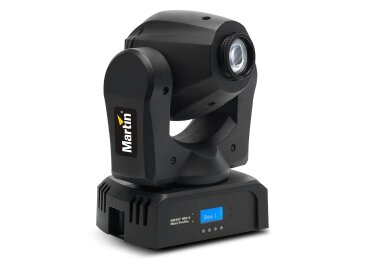

Martin RUSH MH 8 Mini Profile
+

Martin RUSH MH 8 Mini Profile

  • J'aime
  • Tweet
  • Pin it

RUSH MH 8 Mini Profile, Lyre de la marque Martin appartenant à la série RUSH.

Avis
Comparateur de prix
Petites annonces

Fiche technique Martin RUSH MH 8 Mini Profile

  • Fabricant : Martin
  • Modèle : RUSH MH 8 Mini Profile
  • Série : RUSH
  • Catégorie : Lyres
  • Fiche créée le : 23/05/2016

The RUSH MH 8 Mini Profile is Martin Professionals smallest moving head to date with super sharp optics which delivers a high output that punches above its class. High speed pan & tilt with separate color and gobo wheels allows designers maximum flexibility from the lounge bar to the high energy dance floor all within an affordable price bracket.

The MH 8 Mini Profile uses the latest 18W White LED Technology that delivers super sharp optics with over 800 Lumens via a 14 degree beam angle. 8 individual gobos and colors are available with electronic strobe/dimming, manual focus and high speed Pan and Tilt via DMX or Audio Trig. This compact moving head only weighs 4.5KG.



PhysicalLength:  157 mm (6.1 in.)Width:  237 mm (9.3 in.)Height:  327 mm (12.9 in.)Weight:  4.5 kg (9.9 lbs.)
Dynamic EffectsColor wheel:  8 colors plus open, variable and random rotationGobo wheel:  8 static gobos plus open, variable and random rotationStrobe:  Variable from 3 - 20 Hz, pulse effects and random strobeElectronic dimming:  0 - 100%, four dimming curve optionsPan:  540°Tilt:  230°
Control and ProgrammingControl options:  DMX, 4 stand-alone shows, master/slaveDMX channels:  10Stand-alone trigger:  Auto, musicDMX compliance:  USITT DMX512/1990Interface:  Control panel with backlit LCD display
OpticsLight source:  18 W OSRAM LE UW Q8WP LEDMinimum LED lifetime:  50 000 hours (to >70% luminous output)*Beam angle:  14°Focus:  Manual*Figure obtained under manufacturer's test conditions
ConstructionColor:  BlackHousing:  High-impact flame-retardant thermoplasticIP rating:  IP 20
InstallationMounting points:  Bracket for rigging clampLocation:  Dry location only, must be fastened to surface or structureOrientation:  Vertical (head down if suspended)Minimum distance to illuminated surfaces:  200 mm (8 in.)Minimum distance to combustible materials:  100 mm (4 in.)Minimum clearance around fans and vents:  100 mm (4 in.)
ConnectionsAC power input:  IECDMX data in/out:  3-pin and 5-pin locking XLR
