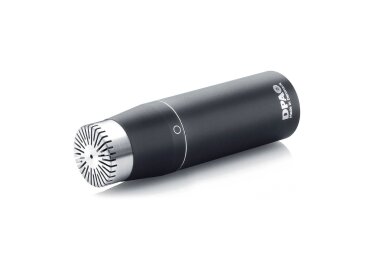

DPA Microphones 4006C

Name: 4006C
Brand: DPA Microphones
SKU: 128536

Ajouter ce produit à

Déposer un avis

Où acheter 4006C ?

Moins

Meilleur prix neuf

Voir plus d’offres

Fiche technique

Créée le 04/10/2011

Directional characteristics	Omnidirectional
Principle of operation	Pressure
Catridge type	Pre-polarized condenser
Frequency range	10 Hz to 20 kHz
Frequency range, ± 2 dB	20 Hz to 20 kHz
Sensitivity, nominal ±2 dB at 1 kHz	40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)	Typ. 79 dB(A)
Total Harmonic Distortion (THD)	< 1 % up to 134 dB SPL peak
Dynamic range	Typ. 119 dB
Max. SPL, peak before clipping	140 dB
Minimum load impedance	2 kohm
Output impedance	< 200 ohm
Cable drive capability	100 m (328 ft)
Output balance principle	Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR)	> 50 dB
Power supply (for full specifications)	48 V Phantom power (± 4 V)
Current consumption	2.8 mA
Connector	XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color	Matte black
Weight	63 g (2.2 oz)
Diameter	16 to 19 mm (0.63 to 0.75 in)
Capsule diameter	16 mm (0.63 in)
Length	64 mm (2.5 in)
Output voltage, RMS	> 4 V
Polarity	+V at Pin 2 for positive sound pressure
Temperature range	-40 °C to 45 °C (14 °F to 113 °F)
Relative Humidity (RH)	Up to 90%
Matching tolerance	± 0,5 dB
Phase deviation for kit	< 5°
