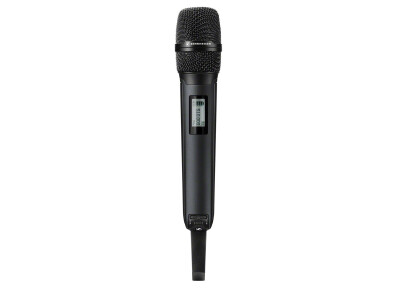

Sennheiser SKM 6000

The SKM 6000 digital handheld transmitter is equipped for every voice, every song and every demand on the world’s live stages. Maximum transmission reliability is delivered by the renowned Long Range mode superior audio quality by the proprietary Sennheiser Audio Codec (SeDAC) from the wireless masterpiece, Digital 9000. Sophisticated electronics prevent disturbing intermodulation, even with numerous transmitters in the most confined spaces. This allows operation in an equidistant frequency grid and efficiently utilizes the available frequency spectrum.

Via Sennheiser’s standard capsule interface, the SKM 6000 transmitter is compatible with microphone heads from evolution wireless G3, 2000, Digital 9000, and the Neumann KK 204 / 205 series.

A special magnesium housing offers the perfect balance between low weight and roadworthy construction.

The BA 60 lithium-ion battery pack ensures up to 5.5 hours of operation. Alternatively, operation is also possible with batteries from the B 60 battery set.

The transmitter is fully compatible with the EK 6042 and EM 9046 in Long Range mode.

• Three frequency variations (470-558 MHz, 550-638 MHz, 630-718 MHz)

• Sennheiser standard capsule interface, compatible with microphone heads from evolution wireless G3, 2000, Digital 9000, Neumann KK 204 and KK 205 series

• Highly effective intermodulation protection

• AES 256 encryption and Digital 9000 encryption

• Compatible with EK 6042 and EM 9046 in Long Range mode

• Li-ion battery packs with 5.5 hours run time

• Magnesium housing

• Dimensions

  270 x 40 mm

• Poids

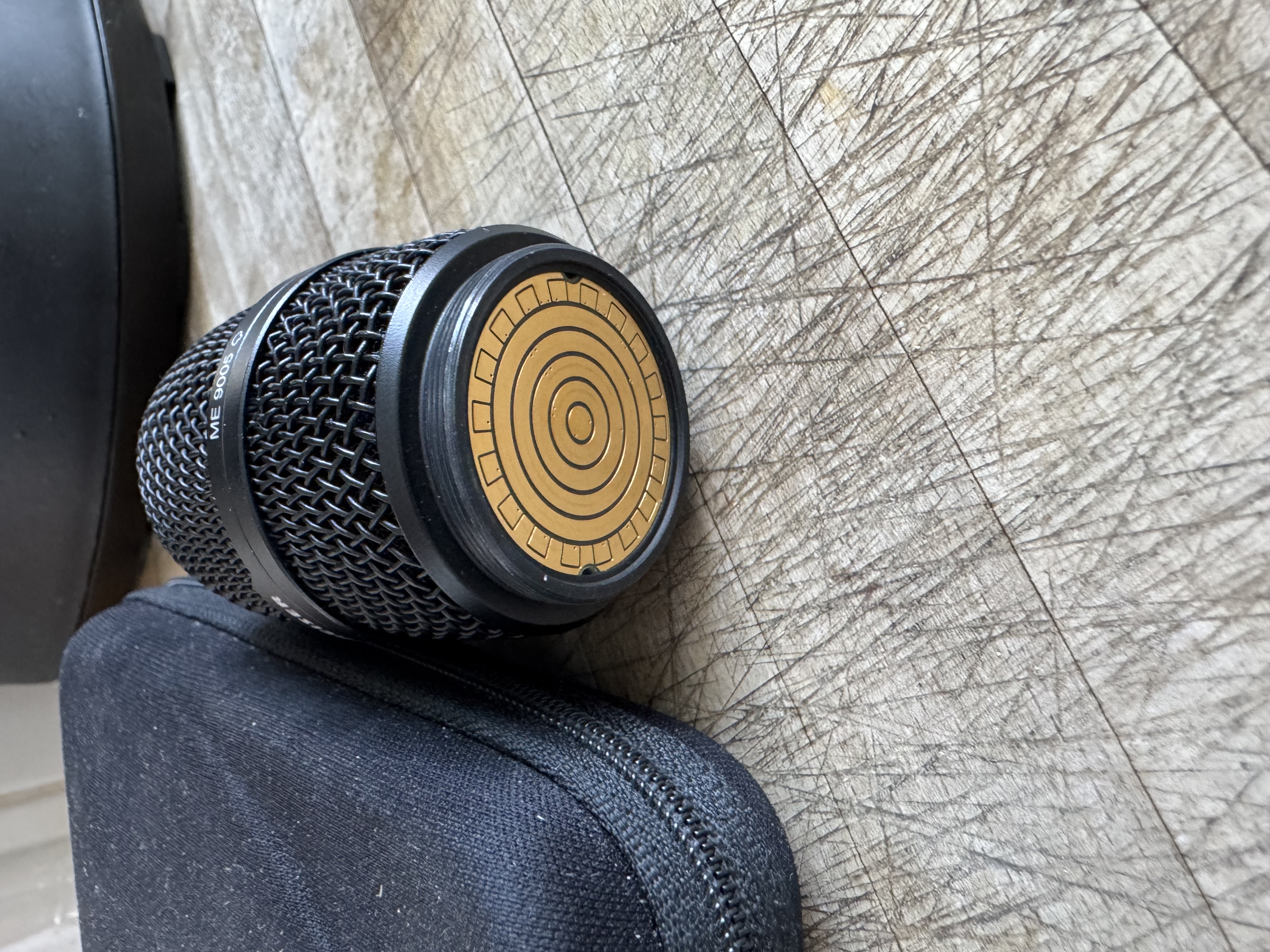

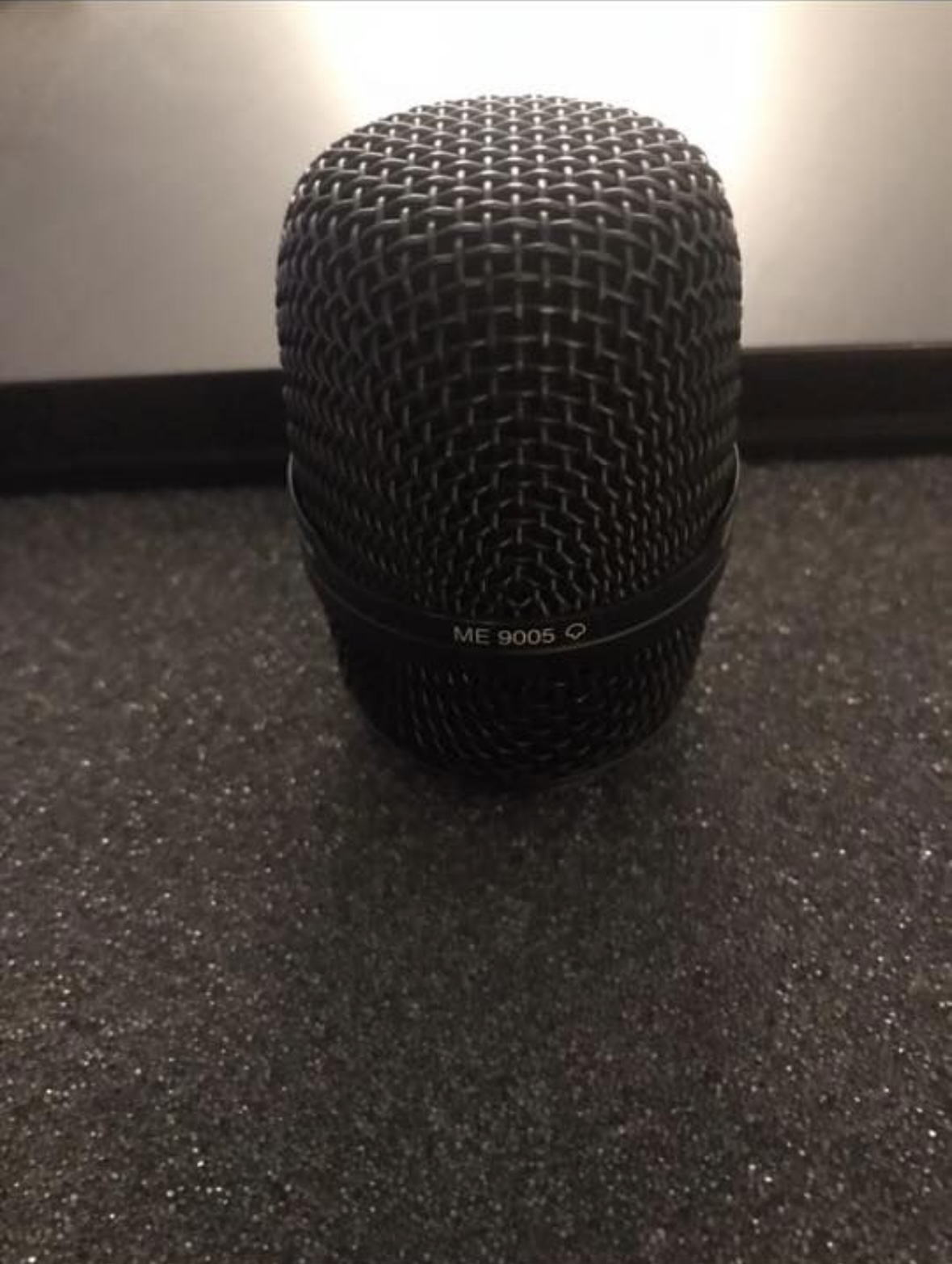

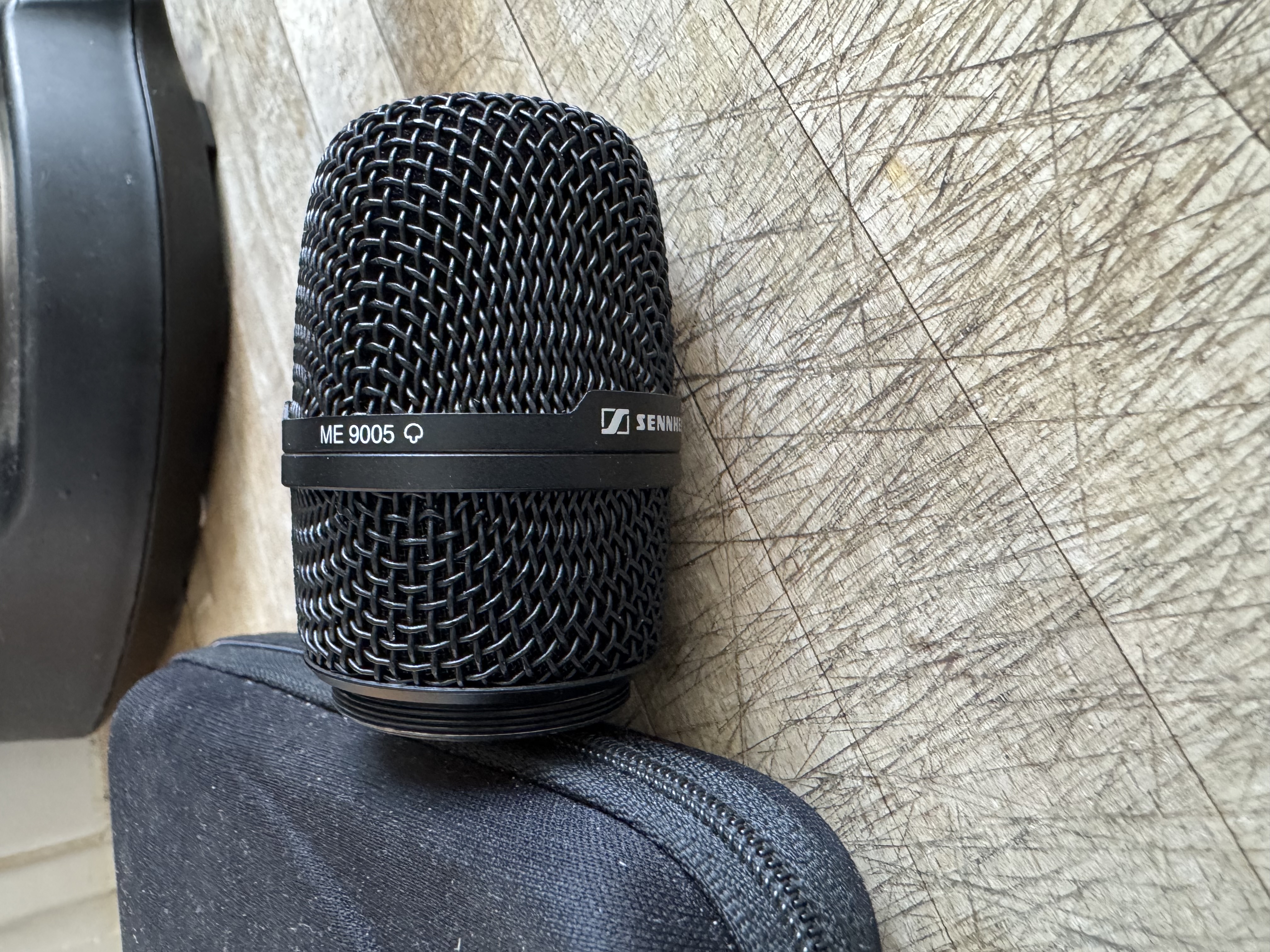

  Approx. 350 g (with BA 60 battery pack and ME 9005 microphone module)

• Alimentation

  Max. 960 mW

• • Puissance de sortie HF

    25 mW rms, 50 mW peak

  • Bande passante commutable

    88 MHz

  • Autonomie

    5.5 h (with BA 60 battery pack)

  • Plage de fréquences

    470 to 718 MHz, subdivided into 3 ranges:
    SKM 6000 A1 - A4: 470 - 558 MHz
    SKM 6000 A5 - A8: 550 - 638 MHz
    SKM 6000 B1 - B4: 630 - 718 MHz

  • Codec audio

    SeDAC (Sennheiser Digital Audio Codec)

  • Frequency stability

    < 5 ppm

  • Tunability

    25 kHz steps

  • Lower cut-off-frequency

    Adjustable: 80 Hz, 100 Hz, 120 Hz

  • Encryption

    AES 256 and Digital 9000 encryption

  • Audio frequency response

    30 Hz - 20 kHz (3 dB)

  • Audio Gain

    Can be set in 3 dB steps from 0 dB to +62 dB (for each capsule)

  • Modulation scheme

    Digital modulation long range mode
