Fiche technique
- Fabricant : Bastl Instruments

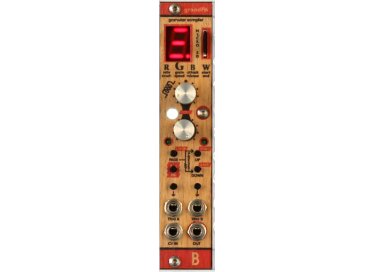

- Modèle : GRANDPA
- Catégorie : Modules générateurs pour synthés modulaires
- Fiche créée le : 19/02/2016
Features
- granular sampler with microgranny 2.0 soundcore
- plays wav files from the microSD card, 22050 Hz, 16 bit, mono
- 12bit output
- adjustable sample rate (can go up to 44.1 kHz)
- trigger inputs for playing 2 different samples with different settings
- each trigger input has a button to do the trigger manually
- RGB led to indicate page (on each page the two knobs adjust different parameters)
- crush distortion
- adjustable grain size and grain shift (positive or negative)
- digital attack decay envelope
- start and end point
- no interpolation between grain jumps
- each sample has adjustable destination of CV input – it can go to any of the parameters
- grain sync – CV input can act as trigger input for triggering the grain shift
- can recognize 35 different samples on the microSD card (they need to be specific name)
- 35 presets (all settings of the 2 samples is one preset)
- CV input reacts in 0-10V range
- handmade in Brno, Czech republic
- front panel from oak wood, handmade custom knobs
- breakout for FTDi USB adaptor for hacking, opensource firmware (see github)
Technical details
- 5 HP
- 35mm deep (skiff friendly)
- current +12 <50mA
- PTC fuse and diode protected 10 pin power connector
»
