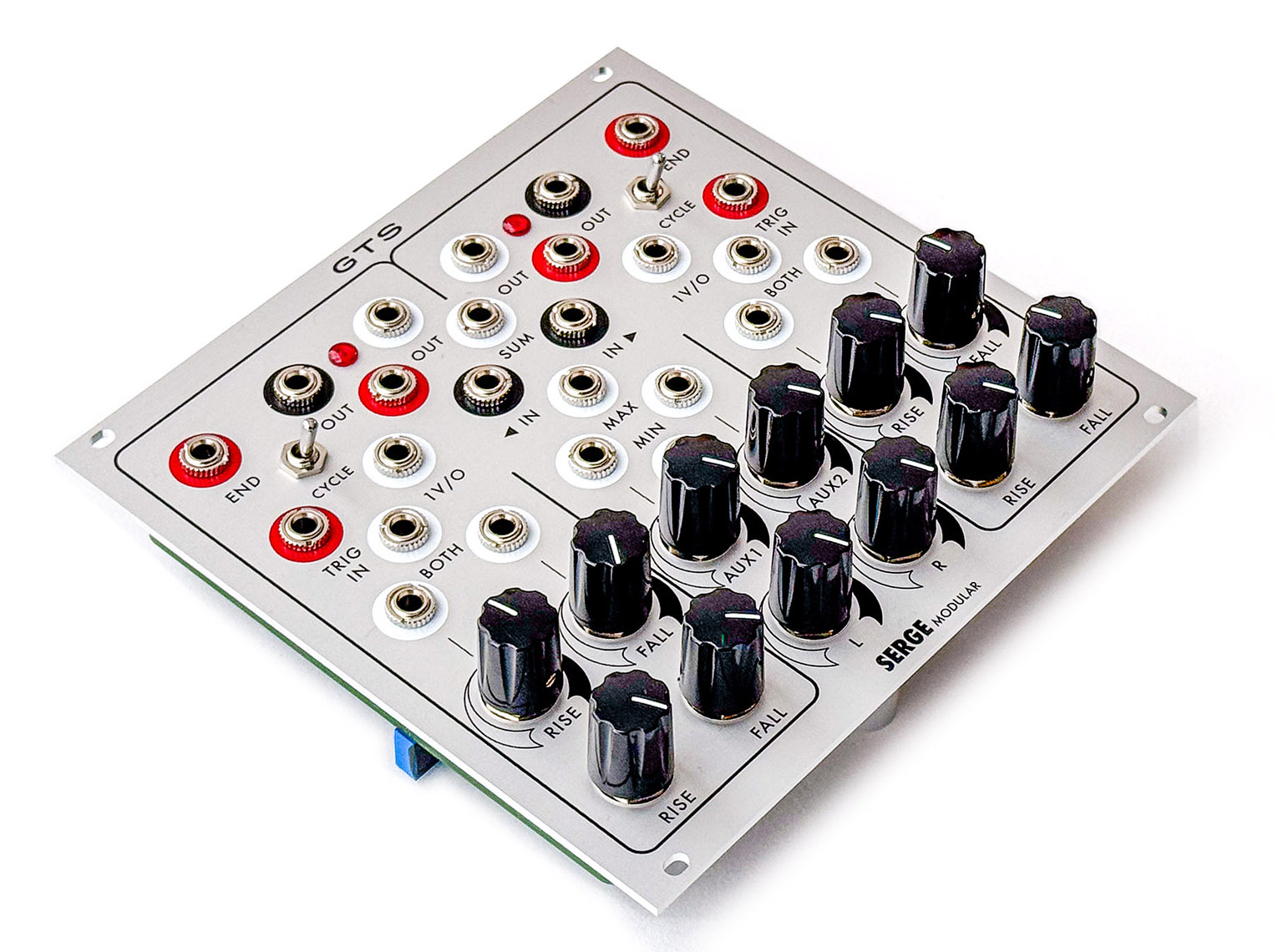

Random Source GTS

The Serge GTS is a complete redesign of the famous Serge Dual Universal Slope Generator (DUSG) by Serge himself - with a new core, optimized for speed and tracking. Like some of the clones it can be used for CV, but also provides exceptional audio performance: transient rise times as fast as 13µs and a maximum cycle speed of 27kHz.

Some functions for which one Slope Generator can be used:

• Function generator for linear, logarithmic, exponential, stepped etc. curves
• Integrate an incoming signal
• Sawtooth / Pulse oscillator
• Add, subtract up to 4 signals
• Max and Min function
• VC Transient Envelope Generator
• VC LFO
• VC Portamento device, Envelope Follower (Detector), VC Pulse Delay (Monostable), Sub-Harmonic Series Generator (Divider), Audio Oscillator with variable waveform symmetry (saw to triangle), Non-Linear Audio Processor (low-fidelity VCF).

• Designed by Serge Tcherepnin 2021-2023
• Increased audio range (up to >28kHz)
• Tracks >5 octaves as a Swatooth / Pulse oscillator
• Temperature stabilized
• Eurorack format (3U), 26 hp
• Power consumption: 90mA @ +12V, 80mA @ -12V
• (NEW) Skiff-friendly: < 25mm (1")
