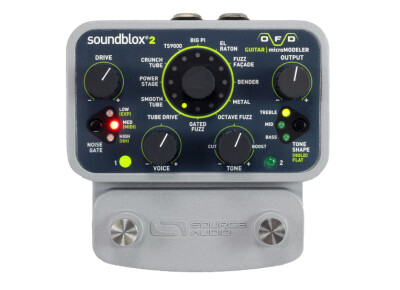

Source Audio Soundblox 2 OFD Guitar MicroModeler

General

• Model Number: SA227
• Bypass: Analog Buffered or Relay True Bypass
• Number of Presets: 2
• Controls:
  • Drive: adjusts the amount of distortion gain applied to the signal
  • Mix: adjusts the level of clean signal added to the mix. Choose between standard clean tone and EQ’d clean tone
  • Tone: cuts or boosts the selected TONE SHAPE (TREBLE, MID, and BASS)
  • Output: adjusts the overall signal volume
  • Effects: Tube Drive, Smooth Drive, Power Stage, Crunch Tube, TS9000, Big Pi, El Raton, Fuzz Façade, Bender, Metal, Octave Fuzz and Gated Fuzz
• Buttons: Noise Gate (Low / Med / High), Tone Shape (Treble / Mid / Bass)
•  Footswitches:
  • Left: Preset 1
  • Right: Preset 2
•  Connectors:
  • Inputs:
    • Guitar In
    • Multi Fonction In
  • Outputs:
    • Guitar Out
    • Multi Fonction Out
  • Power: 9V DC

Technical Data

• Maximum input level: 2.0 Vrms (+6 dBV)
• Input impedance: 1 MOhm
• Output impedance: 1 kOhm
• 115dB DNR audio path
• 24-bit audio conversion
• 56-bit digital data path
• Power: 9V DC (negative center)
• Current Draw: 140 mA (180 mA max with Hot Hand Wireless Adapter)
• Dimensions (LxWxH): 4.5 x 4.5 x 2.25 inch
• Weight: 1.0 lbs
