Fiche technique
- Fabricant : Dell

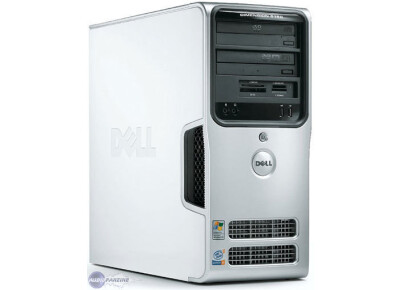

- Modèle : Dimension 5150
- Catégorie : PC de bureau
- Autres dénominations : dimension 5150, dimension5150
Avec la carte mère 0HJ054 :
ID: 17401
Dell 0HJ054
Chipset Intel 945G (Lakeport-G (RAID))
Socket T (LGA775)
FSB speeds : 533MHz. 800MHz. 1066MHz
Form factor. Micro BTX / uBTX (max 264 × 267 mm)
Cache None/Integrated in the CPU
Max RAM size. 4GB(DDR2-533)
RAM type. DDR2 UDIMM
PSU connector. ATX 2.x (24-pin ATX)ATX P4 connector 12v (4-pin P4)
I/O ports. 1x
3.5mm Audio Combo 1x
Floppy interface 1x
IDE interface 1x
RJ-45 LAN. 2x
SATA II. 7x
USB 2.0. 1x
VGA
Expansion slots 2x
32-bit PCI 1x
PCIe x1 1x
PCIe x16
Also known as:
Dell Connolly
Dell Dimension 5100
ASUS Connolly
Notes:
The UL code on the PCB suggests this was manufactured by ASUS.
The Dell Dimension 5100 only officially supports Prescott based Pentium 4 up to Pentium 4 550(J)/551/650, installing a Pentium D, a faster Pentium 4 or a Cedar Mill will trigger the unsupported CPU warning.
Avis utilisateurs
RamchIl va super bien pour les prestations que je fais.
