Mad Hatter Guitar Products SVST-HSHM

• Fabricant : Mad Hatter Guitar Products
• Modèle : SVST-HSHM
• Catégorie : Autres pièces détachées pour guitare
• Fiche créée le : 26/09/2018

The Terminator Single Volume Single Tone System with 5-Way Selector Switch for Humbucker - Single - Humbucker Modified (SVST-HSHM) is a Modified version of the HSH system where position three on the 5-Way Selector Switch is now both the Bridge and Neck pickups together instead of the traditional middle pickup by itself.

The SVST-HSHM is specially designed for instruments with two humbucker pickups with coil splitting options in the bridge and neck positions, and a single coil in the middle position.  This instrument would utilize a single volume control and a single tone control.

When installed following the instructions provided, the switch positions will be as follows:

Position 1 - Bridge Pickup Full Humbucker
Position 2 - Bridge Pickup Coil Tapped & Middle Pickup
Position 3 - Bridge & Neck Pickups  Full Humbucker
Position 4 - Neck Pickup Coil Tapped & Middle Pickup
Position 5 - Neck Pickup Full Humbucker

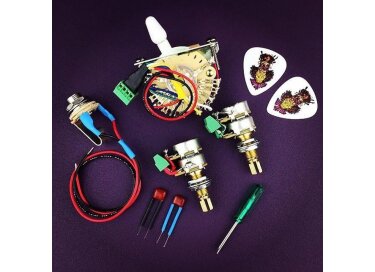

System includes:

• One Terminator "Goes 2/11 Volume" Pot
• One Terminator "Killer Tone" Pot
• Mad Hatter Switchcraft Output Jack (Updated)
• Terminator HSH CRL 5-Way Selector Switch
• Two Polypropylene Tone Capacitors, a .022uF and a .047uF to help find just the right tone.
• Wiring Instructions

Looking for a system in this configuration with additional tonal options?  Check out the following Transformer Terminator Systemsfor your pickup configuration:

SVST-5/3M for Humbucker - Single - Humbucker

***This system requires 1.5" of clearance within in the control cavity for the switch.  May not fit in some Ibanez S-Series guitars.***
