SuperMegaUltraGroovy FuzzMeasure 4
Photos
1/1

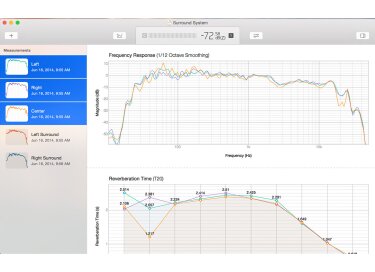

SuperMegaUltraGroovy FuzzMeasure 4

Analyseur ou outil de visualisation de la marque SuperMegaUltraGroovy

Écrire un avis ou Demander un avis
Prix public US : $99 incl. VAT

Annonces FuzzMeasure 4

Alerte nouvelle annonce

News

Fiche technique

  • Fabricant : SuperMegaUltraGroovy
  • Modèle : FuzzMeasure 4
  • Catégorie : Analyseurs & outils de visualisation
  • Fiche créée le : 04/06/2015

An audio and acoustic measurement tool to produce, analyze, and publish graphs on Mac OS X

What's New in 4.0?

General

  • All-new interface design for OS X Yosemite
  • Improved interface when no measurements or graphs have valid content
  • Brand-new application, document, and license key icons
  • Vastly improved help file
  • Autosave and document versioning support
  • Document templates to help you get started quickly with a set of commonly-used graphs

Impulse Responses

  • Impulse response displays (including the window editor) now show the impulse response with its "negative time data" where it should be

Measurement Records

  • Windows may now be set to start (and end) in "negative time" before the impulse response peak
  • Calibration records are now accessible (and can now be changed!) in the sidebar
  • Level calibration for a measurement record can now be enabled and disabled in the sidebar
  • Microphone calibration correction curves can now be enabled and disabled in the sidebar

Image Exports

  • You can now export PDF images of graphs
  • Exported images can now have their sizes specified
  • Raster image exports now allow for an @2x option for exporting retina-capable graphs on the web

Printing

  • Individual graphs may be printed by right-clicking on them
  • Printing will now include all graphs in the list

Level Meter

  • Integrated into the main window
  • Now shows dBFS values before being calibrated
  • Can display A- and C- weighted values as well (by clicking on the (Z))

AppleScript

  • Now allows graph data exports (including comparison, averaged, smoothed, etc.)
  • Reverberation Time data can now be exported via AppleScript
  • WAV and AIF impulse exports, including bit depth settings

FFT Waterfall Graph

  • Can now be viewed in the main window!
  • The Waterfall graph can now be automatically aligned to start at the impulse peak
  • Improved waterfall performance now allows for higher-resolution waterfall calculations
  • Allow settings to use different shaped windows (Hamming, Hanning, etc.) in their calculation
  • Waterfall graphs also allow settings for FFT length as well

Energy Decay Curve

  • The Energy Decay (Schroeder) curve can now be shown filtered by octave- and third-octave bands

Sidebar/Inspector

  • Separate impulse window editor that is accessible from the sidebar

Microphone Calibration

  • All-new Microphone Calibration UI
  • Microphone calibration records can be attached to input channels in the audio settings
  • Automatic online retrieval of calibration data for UMIK-1 microphone owners

Harmonic Distortion Graph

  • Now offers configurable harmonic ranges
  • Can now display averaged, added, etc comparison data
  • Now displays up to the 7th harmonic

Harmonic Distortion Percentage

  • Now shown with a logarithmic Y axis
  • Now offers configurable harmonic ranges
  • Can now display averaged, added, etc comparison data
  • Now displays up to the 7th harmonic

ISO 3382 Acoustics Graphs

  • Improved bar graphs with support for comparisons
  • New line style graphs for the ISO 3382 values allowing improved comparisons

Graphing Interface

  • Any of FuzzMeasure's graphs (including the bar and waterfall graphs!) can now be combined with any other
  • Multiple copies of the same graph can be shown alongside one another with different settings
  • A quick keystroke (command-option-=) now lets you reset graph extents quickly
  • Support for pinch zoom and two-finger panning (while holding command+control)
  • Each of the graphs carries its own settings that are saved with the document
  • Changes to graphs (such as setting extents) are undoable
  • Graphs can be dragged around by their title in the graph list to be rearranged

Importing and Exporting

  • FuzzMeasure can now import and export WAV format impulses in addition to AIF and TIM files

Graph Calculations

  • Many of the graphs are now normalized by default for easier reading
  • Mixed sample rate measurements can now be added, averaged, etc. with one another
  • All the frequency domain graphs can now be viewed with a linear frequency axis
  • Add/Average/Subtract operations for frequency domain graphs have been improved when calculating with decibel data

New Graphs

  • Clarity (C30, C50, C80) graphs are now available
  • The Definition (D50) graph is now available
  • The Early Decay Time (EDT) graph is now separate from the Reverberation Time graph
  • Low Frequency Waterfall graphs with a linear frequency axis over the 20-200Hz range

Measuring

  • Clipping is now detected during measurements (on both the measurement and correction channels)
  • The correction channel is now also checked for an adequate level during measurement
  • Audio settings will now enforce a shared sample rate among mixed device environments
»
