Grace Design Felix

• Fabricant : Grace Design
• Modèle : Felix
• Catégorie : Préamplis à transistors
• Fiche créée le : 20/01/2015

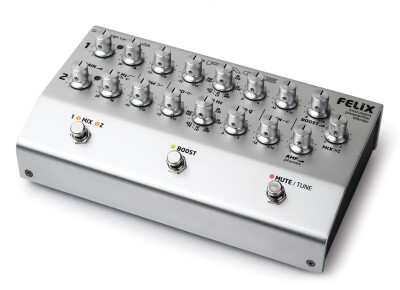

Felix is a two-channel instrument and microphone preamplifier and mixer in a large stompbox format

• 2 channel audio path with blend output control
• m101 style transimpedance microphone preamplifier, no electrolytic capacitors in the signal path
• Ultra precision 0.5% thin  film resistors are used in the signal path
• Careful power supply design and grounding yield an ultra-quiet signal path and professional level headroom and line driving ability
• Fully ground isolated DI outputs with high quality, low distortion, fully shielded transformers
• Super rugged 1/4” connectors with heavy duty metal bushings
• Powerful, independent EQ on both channels – hi and low shelving and full parametric midrange
• Mid frequency control has two ranges 70-640Hz / 655 - 6kHz
• 20Hz-1kHz sweepable HPF on both channels, can also be set as notch filter
• A / B footswitch for multiple instrument configurations or soloing different pickups
• Mute/ tune footswitch mutes all outputs except dedicated tuner out
• Boost footswitch for variable 10dB level boost (global)
• DI outputs sources are configurable - Ch1 (mix or Ch1) Ch2 (mix or Ch2)
• Dedicated level controlled stage amp output (configurable as blend or Ch2)
• Dedicated tuner out, remains hot when unit is muted
• Side panel switches for 48V, phase, mid Hz range select, HPF/notch select, 12V and A/B mode select
• 12V mic input power available on Ch2
• Phase reverse switch for each channel
• 3 input impedance settings on each channel – Ch1 10K, 1MEG, 10MEG / Ch2 332K, 1MEG, 20MEG accommodating a wide range of pickup types
• Aux footswitch jack for accessing switch functions if Felix is mounted in a rack tray or on top of an amp
• Mic stand flange mount screw holes holes for putting Felix on a mic stand
• 1/8” headphone jack, active when Felix is muted
• Global TRS effects insert jack
• Universal 100-240 AC power supply with standard IEC cable – no wall wart - take Felix anywhere in the world!
• Full 5 year transferable warranty / built for long, happy life on the road
• Designed and made by family and friends in Lyons, CO, USA
