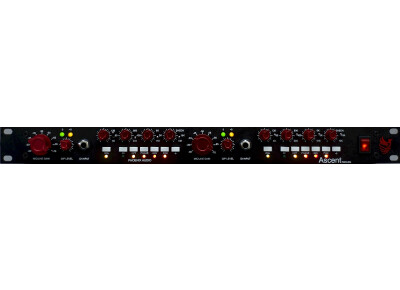

Phoenix Audio Ascent Two EQ

• Fabricant : Phoenix Audio
• Modèle : Ascent Two EQ
• Série : Ascent
• Catégorie : Préamplis à transistors
• Fiche créée le : 28/01/2018

Préampli micro et DI de deux canaux en classe A avec égaliseur de 4 bandes Gyrator, au format rack 1U pour le studio

• 1U half rack space unit: With 240V/110V mains voltage input selector switch (optional 19" rack kit)
• Class A (DSOP2) Output specs. Frequency response: 20Hz to 20kHz +- 0.5dB, Maximum Output = +26dBu @ 1kHz, Noise = -90dB @ 20Hz to 20kHz.
• Output connections: XLR’s and TRS 1/4″ Jack on rear
• Phoenix Audio’s unique Class A, transformerless, True balanced Mic input stage. Microphone inputs: XLR’s on Front and Rear Panels
• Phoenix Audio’s unique Class A, transformerless, True balanced Mic input stage. Microphone inputs: XLR’s on Front and Rear Panels
• Individual Earth Lift: Push-button Switches
• Gain Range (Mic input): -30 to -70 in 5dB steps With 10dB more available on the fader.
• Gain reduction: -15dB push-button pad switch (Mic input only)
• High Input Impedance DI: Mono 1/4″ Jack on front panel
• Gain Meter: LED Metering. (Green = 0dB, Red= +8dB, corresponding to “4” and “6” on a PPM Meter).
• Phantom Power: Switchable phantom on Push-button Switche
• High Pass Filter: on Push-button Switch
• Vari-filter control 70hz to 400hz on a 21 postion detented control
• Phase Reverse: on Push-button Switch
• Frequency Response Mic Input Stage: -0.4dB @ 40Hz, -0.3dB @ 25kHz
• Frequency Response: DI Input Stage: -0.3dB @ 40Hz, – 0.5dB @ 25kHz
• Typical Headroom: +26dB on Mic-Pre stage
• DI Stage gain: Maximum of 30dB
• Gyratory-based EQ Frequency Centres: (4 Bands) High – 25K 15K, 10K, Hi Mid – 6K, 3K, 1K6, Low Mid – 800Hz, 400Hz, 200Hz, Low – 130Hz, 80Hz, 40Hz
• EQ Cut/Boost Levels: 16dB Cut/Boost Per Band with fully detented pots in 21 positions
• All units are wired with PTFE silver military grade cableAll units are wired with PTFE silver plated military grade cable

Distribué par Filling Distribution
