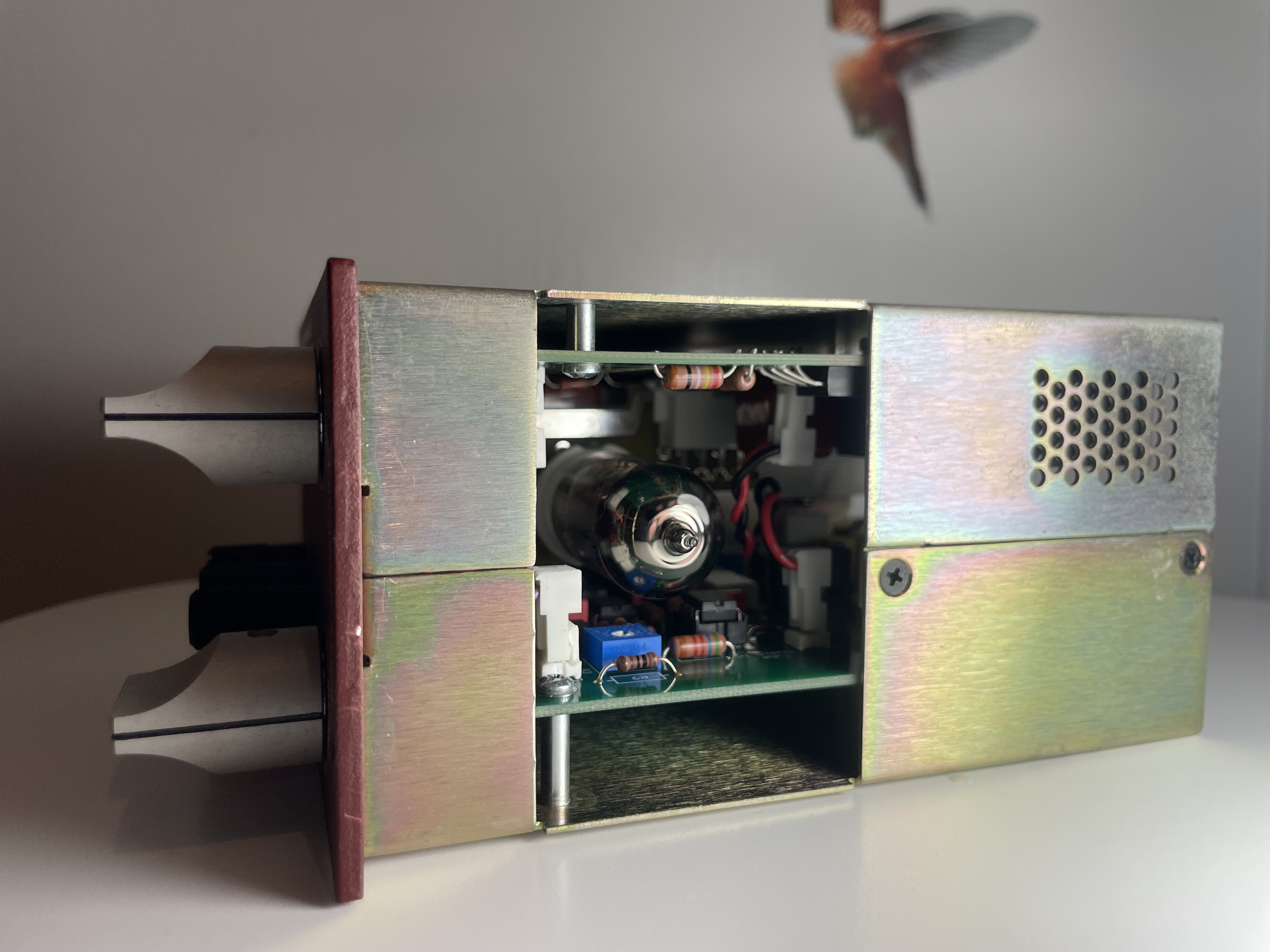

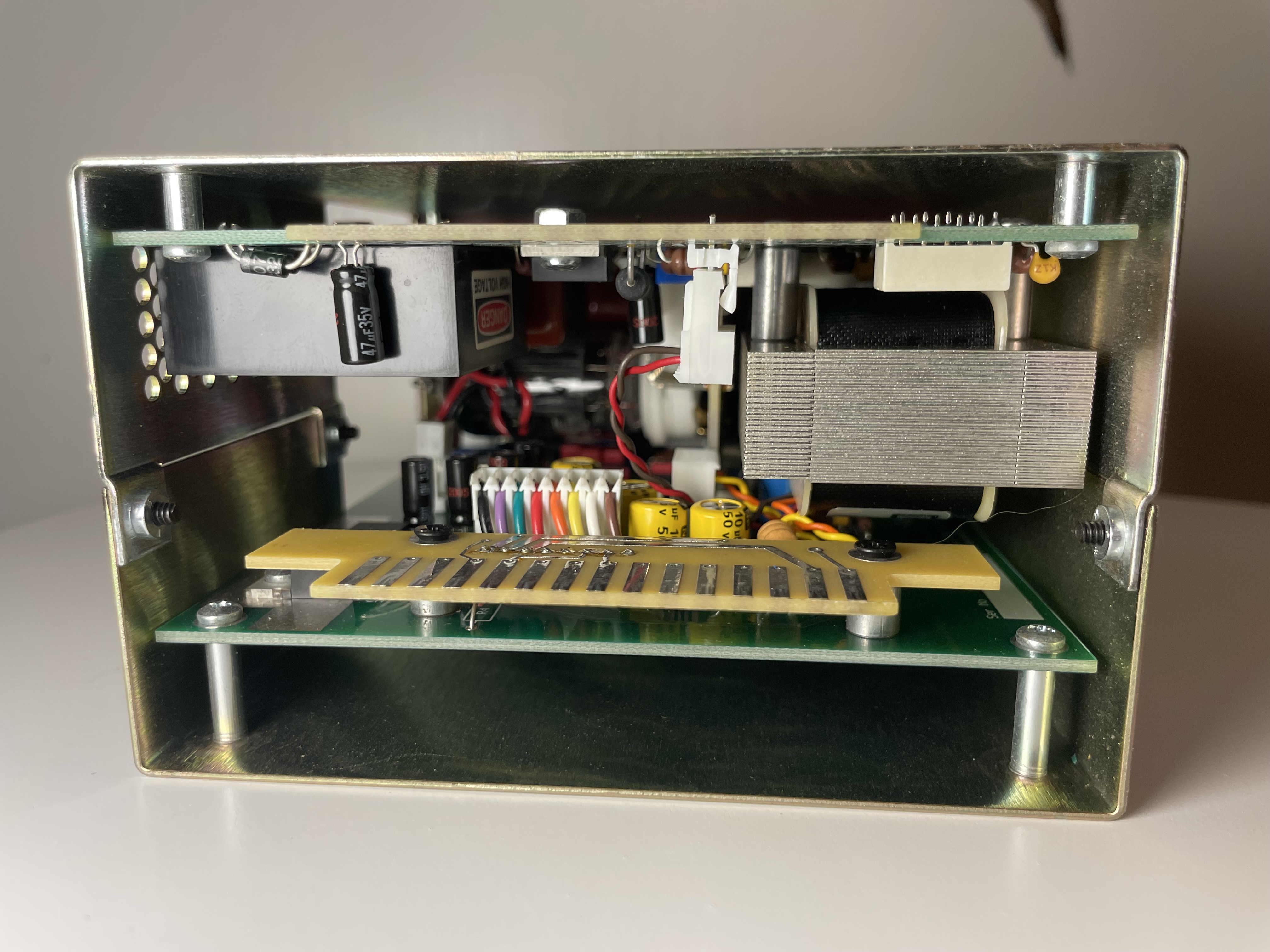

Lachapell audio 583e 500 Series Vacuum Tube Preamplifier with EQ

Description

Vends tranche de console
format 500 en 2 unités
très rare d’occasion
Parfait état
RAS
Tarif 1100€ ferme
Frais d’envois en supplément
Pas d’échanges

The world’s first 500-format tube microphone preamplifier.

The LaChapell 583E is a tube microphone preamplifier with EQ that is compatible with any 500 cabinet. The 583E EQ section can be operated either in series with the tube preamp or independently as a separate EQ. The 583E preamp section features a single channel tube preamp with LaChapell’s proprietary TrueTube™ technology. Most other tube designs for the 500 format do not provide enough current to the tube, whereas TrueTube allows it to perform optimally with a full voltage of 250V. Cinemag input transformers, Jensen output transformers and other high quality components have been carefully selected to ensure that signal quality is not compromised.

In addition to the preamp, the 583E has an ultra-clean, phase-coherent EQ section. It can follow the preamplifier or be operated as a separate module. It can follow the preamp or operate as a separate module.Select one of the two XLR inputs on a 500 cabinet to access either the preamp or the EQ, or both in series.

The EQ design is based on the LaChapell Model 503 and features the same low distortion and minimal phase deviation. Perfect for recording or mixing, the 583E Tube Microphone Preamp with EQ is suitable for any audio source.

LaChapell Audio 583E 500-Series Tube Preamp Specifications
INTERNAL GAIN: 0 to 72dB
THD+N: 0.10% (minimum)
FREQUENCY RESPONSE : 10Hz to 50KHz
MAX OUTPUT (1% THD+N): +26dBu
TYPICAL EIN: -121dBu
INPUT IMPEDANCE: 1.5KΩ
TUBE COMPLIMENT: 1 x 12AX7 / ECC83
LaChapell Audio 583E 500-Series Tube EQ Specifications
NOISE FLOOR: -95dB
THD+N: 0.012% (@ +4 output)
FREQUENCY RESPONSE: 10Hz to 50KHz (flat)
CUT / BOOST RANGE: +/- 8dBu
MAXIMUM INPUT LEVEL: ≥25dB
INPUT IMPEDANCE: 48KΩ
INPUT / OUTPUT TYPE: TRANSFORMERLESS
